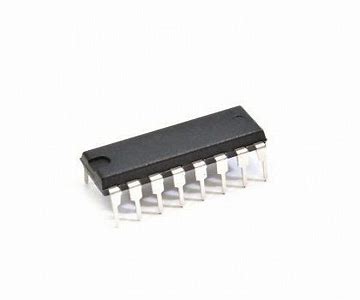

74HC151 8-Bit Multiplexer 16 Pin 8-Input IC in Pakistan

@ MODERN HALLROAD

74HC151 8-Bit Multiplexer is high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL).

 150.00

Out of stock

Category:

74HC151 8-Bit Multiplexer is high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

74HC151 are 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y).

A HIGH on E forces the output Y LOW and output Y HIGH. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.

74HC151 is 8 – Input Multiplexer 16 Pin IC. Data Selector/Multiplexer contains full on-chip decoding to select one-of-eight data sources as a result of a unique three binary code at select inputs.

Two complementary outputs provide both inverting and non-inverting buffer operation. A Strobe input is provided which, when at a high level, disables all data inputs and forces Y output to low state and W output to a high state.

Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. Used for Boolean Function Generator.

The 74HC151 is an 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y). A HIGH on E forces the output Y LOW and output Y HIGH.

Features: –

  • True and complement outputs
  • Multifunction capability
  • Permits multiplexing from n lines to 1 line
  • Non-inverting data path
  • See the “251” for the 3-state version
  • Output capability: standard
  • ICC category: MSI

74HC151 8-Bit Multiplexer Specifications: –

  • Specified in compliance with JEDEC standard no. 7A
  • Input levels:
  • For 74HC151: CMOS level
  • For 74HCT151: TTL level
  • Low-power dissipation
  • Non-inverting data path
  • ESD protection:
  • HBM JESD22-A114F exceeds 2000 V
  • MM JESD22-A115-A exceeds 200 V
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C

74HC151 8-Bit Multiplexer Pin Description: –

Symbol PIN Description
S0,S1,S2 11,10,9 Common data select inputs
I0 TO I7 4,3,2,1,15,14,13,12 DATA input
Ē 7 enable input (active LOW)
Y 5 ground (0 V)
6 output (active LOW)
GND 8 ground (0 V)
VCC 16 positive supply voltage
Datasheet: –

assets.nexperia.com/…heet/74HC_HCT151.pdf

Package: –

1 x 74HC151 8-Bit Multiplexer
