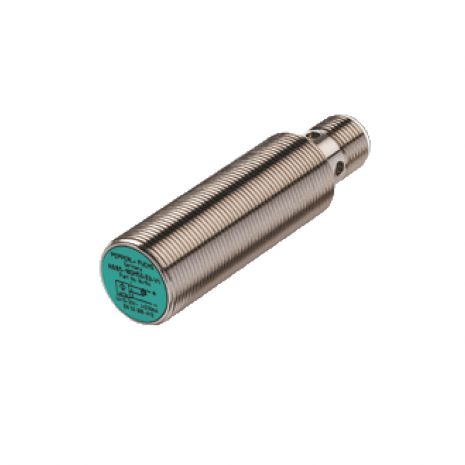

NPN NO NC 18mm Inductive proximity sensor NBB8-18GM50-A2-V1
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
NPN, NO, NC, 18mm Inductive proximity sensor NBB8-18GM50-A2-V1 BR2130
Features:
8 mm flush
Increased operating distance
Extended temperature range
-40 … +85 °C
With increased sealing, protection class
IP68 / IP69K
E1-Type approval
₨ 2,880.00
Features:
- 8 mm flush
- Increased operating distance
- Extended temperature range
- -40 … +85 °C
- With increased sealing, protection class
- IP68 / IP69K
- E1-Type approval
Specifications:
| General specifications | ||
|---|---|---|
| Switching function | complementary | |
| Output type | PNP | |
| Rated operating distance | 8 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm | |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 24 mm x 24 mm x 1 mm |
|
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.7 | |
| Reduction factor rBrass | 0.45 | |
| Output type | 4-wire | |
| Nominal ratings | ||
| Operating voltage | 7 … 30 V | |
| Switching frequency | 0 … 1600 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 4 µA at 25 °C | |
| No-load supply current | ≤ 10 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1484 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
