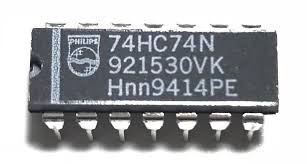

Name: 74HC74 Dual D-Type Flip Flop IC With Clear And Preset
SKU: 13342
Price: 80.00 PKR
Availability: OutOfStock

74HC74 / 7474 Dual D-Type Flip Flop IC With Clear And Preset is a versatile IC that can be used in a variety of applications. It is a good choice for projects that require data storage, sequential circuit design, or logic gates.

74HC74 / 7474 is a dual D-type flip-flop IC and It is a positive-edge triggered flip-flop, which means that the data on the D input is transferred to the Q output on the positive-going edge of the clock signal. The 74HC74 has two independent D-type flip-flops, each with its own clock, clear, and preset inputs.

The 74HC74 is a high-speed CMOS IC, which means that it can operate at high frequencies. It is also compatible with a wide range of power supply voltages, making it a versatile IC for a variety of applications.

SN74HC74 device contains two independent D-type positive edge triggered flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs.

When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements are transferred to the outputs on the positive going edge of the clock (CLK) pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of CLK. Following the hold time interval, data at the D input can be changed without affecting the levels at the outputs.

The 74HC74 is a D-type flip-flop with dual positive edge triggering. They have individual data (nD), clock (nCP), set (nSD) and reset (nRD) inputs, and complementary nQ and nQ outputs. The device inputs are compatible with standard CMOS outputs; with pullup resistors and it is compatible with LSTTL outputs.

Features : –

SN74HC74 (7474) integrated circuit provides two independent D-type flip flops in a single package. The flip flop is triggered on the positive edge of a clock pulse.

Here are some of the features of the 74HC74:

Positive-edge triggered
Dual D-type flip-flops
High-speed CMOS
Wide range of power supply voltages
Compatible with a variety of logic families

74HC74 Dual D-Type Flip Flop IC Specifications : –

SN74HC74 is relatively straightforward to use in this manner, all that is required are clock and data signals.

Here are some of the specifications of the 74HC74:

Operating frequency: 50 MHz
Power supply voltage: 2.0 to 6.0 V
Input and output current: 100 µA
Output load capacitance: 100 pF

74HC74 Dual D-Type Flip Flop IC Applications : –

The 74HC74 can use in a variety of applications, such as:

Data storage: The 74HC74 can use to store data in a temporary or permanent manner.
Sequential circuit design: The 74HC74 can use to create sequential circuits, such as counters, shift registers, and ring buffers.
Logic gates: The 74HC74 can use to create logic gates, such as AND gates, OR gates, and XOR gates.
Other applications: The 74HC74 can use in a variety of other applications, such as pulse generation, timing, and data acquisition.
