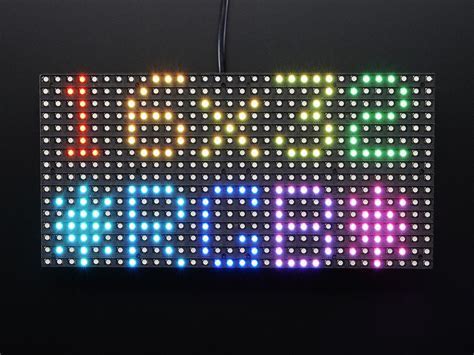

16X32 RGB LED Matrix Panel 6mm Pitch

A 16X32 RGB LED Matrix Panel 6mm Pitch with 512 bright RGB LEDs arranged in 16 rows and 32 columns. Row and column driver circuits are built on the back side of the matrix panel. The data and control signal pins are accessible through a HUB75 (8×2 IDC) connector. It requires 12 digital I/O pins of Arduino Uno for full color control. The display module also comes with a RGB connector shield for Arduino Uno and necessary cables for easy wiring between the RGB panel and the Arduino board

Bring a little bit of Times Square into your home with this 16X32 RGB LED Matrix. These panels are normally used to make video walls.

An 16X32 RGB LED Matrix with 512 bright RGB LEDs arranged in 16 rows and 32 columns. Row and column driver circuits are built on the backside of the matrix panel. The data and control signal pins are accessible through (8×2 IDC) connector. It requires 12 digital I/O pins of Arduino Uno for full-color control. This RGB panel can be connected with Arduino boards, nodemcu, and esp32 development board.

These displays are ‘chainable’ – connect one output to the next input – but our Arduino example code does not support this (yet). It requires a high speed processor and more RAM than the Arduino has!

These panels require 12 digital pins (6 bit data, 6 bit control) and a good 5V supply, up to 2A per panel. These large 32×16 RGB LED panels are an awesome place to start. You can create animations, games, or all sorts of other fun displays with them.

Features: –

• Operates at 5V (2A rated power supply is recommended)
• Dimensions are 192mm x 96mm (7.6”X3.8”)
• LED spacing or pitch : 6mm
• Compatible with Adafruit’s RGB Matrix Panel Library
• RGB connector shield and cables are included (no additional wires are needed for connecting the matrix to Arduino Uno)
• The RGB connector shield also features the DS1307 RTC chip on board along with a CR1220 coin-cell battery holder. The I2C pins of the DS1307 chip are pre-wired to A4 and A5 pins of the shield.

16X32 RGB LED Matrix Specifications: –

• Dimensions: 192mm x 96mm x 12mm (7.6″ x 3.8″ x 0.5″)
• Panel weight with IDC cable and power cable: 170g
• 5V regulated power input, 2.5A max (all LEDs on)
• 5V data logic level input
• ~2000 mcd LEDs on 6mm pitch
• Compatible with M3 mounting screws
• 1/8 scan rate
• Indoor display, 140 degree visibility
• Displays are ‘chainable’ – connect one output to the next input – but our Arduino example code does not support this yet

Related Documents: –

• RGBMatrixPanel Library
• Hookup Guide
• Product Video

Package: –

1 x 16X32 RGB LED Matrix Panel 6mm Pitch
