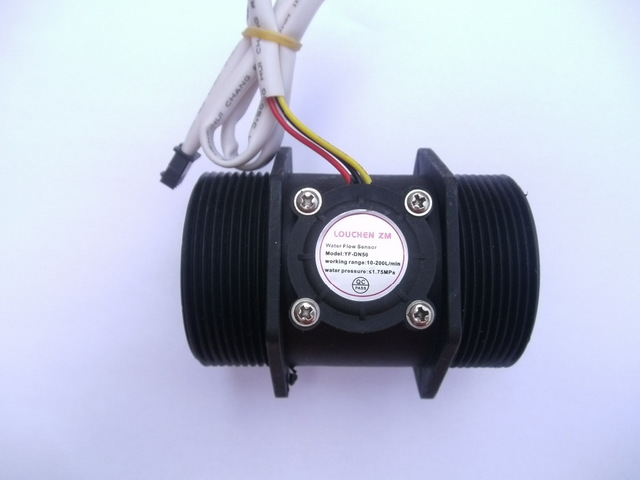

DN50 G2 WATER FLOW SENSOR
This Sensor will measure the flow rate of liquid.
₨ 1,840.00
Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Flow range:10-200L/min
Sensor:Hall effect
Maximum current:15 mA(DC 5V)
Working voltage range:DC 5-18 V
Load capacity:¡Ü10 mA(DC 5V)
Operating Temp:up to 80C,Operating humidity:35%-90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance:>100M OHM
Storage Temperature:-25-80C
Storage humidity:25%-95%RH
Output Waveform:Square Wave,output pulse signal.
Cable length:480mm
Max Size:92mm*68mm
