Comparing with the previous 3rd generation TB6560AHQ Stepper Driver, besides including all the functions that the 3rd generation TB6560AHQ Stepper Driver has, this newly released 3rd generation TB6600HG Stepper Driver was specially developed for bigger stepper motors which have higher current. As long as the current range of the stepper motors is within 0.2-5.0 amps

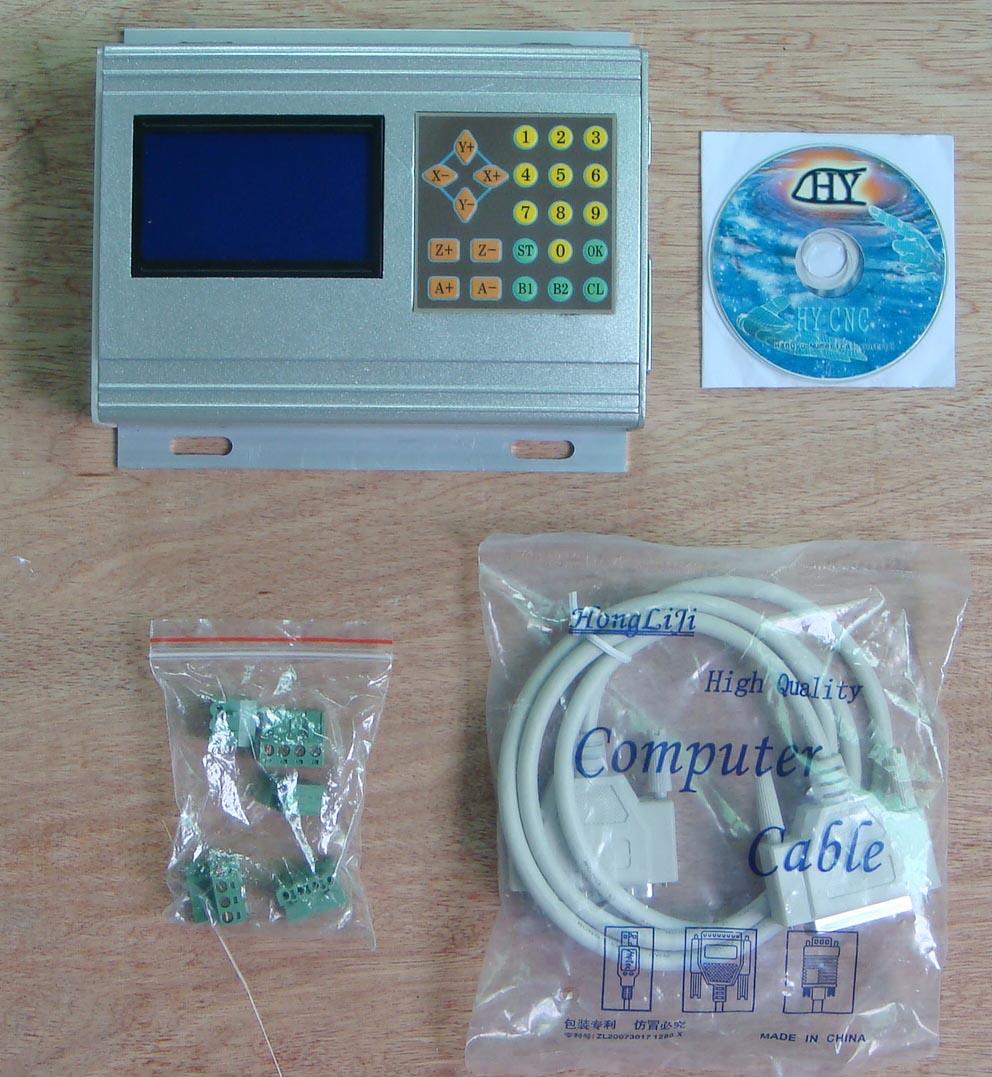

To manually control the stepper motor, both of the standard and professional drivers have been equipped with the display panel and control pad.
Automatically identify both of the computer and control pad, functions of the computer and control pad can be switched intelligently for each other without any interference.
Display panel can real-time trail the running path of G-Code on the computer or input by the control pad, and then completely and Simultaneous display the changing of each axis'(X, Y, Z axis etc.) values on its screen.
Both of the standard version and professional version are compatible with the Mach2, Mach3(Default Software), LinuxCNC(EMC2),KCAM4 CNC Software, etc.. Besides, the professional version also can automatically trail the path running path of G-Code from the CNC software (e.g.Mach3, EMC2, KCAM4, etc.) of the computer and record the G-code into the memory chip; Easy to repeatedly run the G-code to control the stepper motors without computer.
The professional version also support manual programming via the control pad, as long as input the required values on one axis and record them in the memory chip of the driver, and then run these recorded values to drive the axis to make linear motion, widely used on RBI machine, Conveyor and so on.
Automatically finish Tool-settings on X, Y, Z Axis via the control pad, without the support of the computer.
Compatible with all the motors with 0.2A-5.0A (peak) rated current, four types of adjustable output current can be set on the driver board.
1, 2, 4(new mode), 8, 16 adjustable microstep control, motors run more precisely and smoothly.
Overload, overcurrent, overheat, overvoltage and undervoltage protection to avoid damaging your computer and devices.
Totally enclosed optical isolation and single-chip PWM bipolar sinusoidal chopper to insure motors work at low noise & vibration, and avoid motors creep at a low speed.
With one 0-10V PWM Signal output port for speed adjustment and one Relay control port.
5 types of input control in manual control interface, to set Limit, Estop, Midpoint-Setting, Cutter-presetting/Tool-Setting etc…
Cooling Aluminium BoxDesign for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids.
For processing various pattern mould.
For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc..
For carving portrait, scenery, handwriting, sealing, etc..
Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
