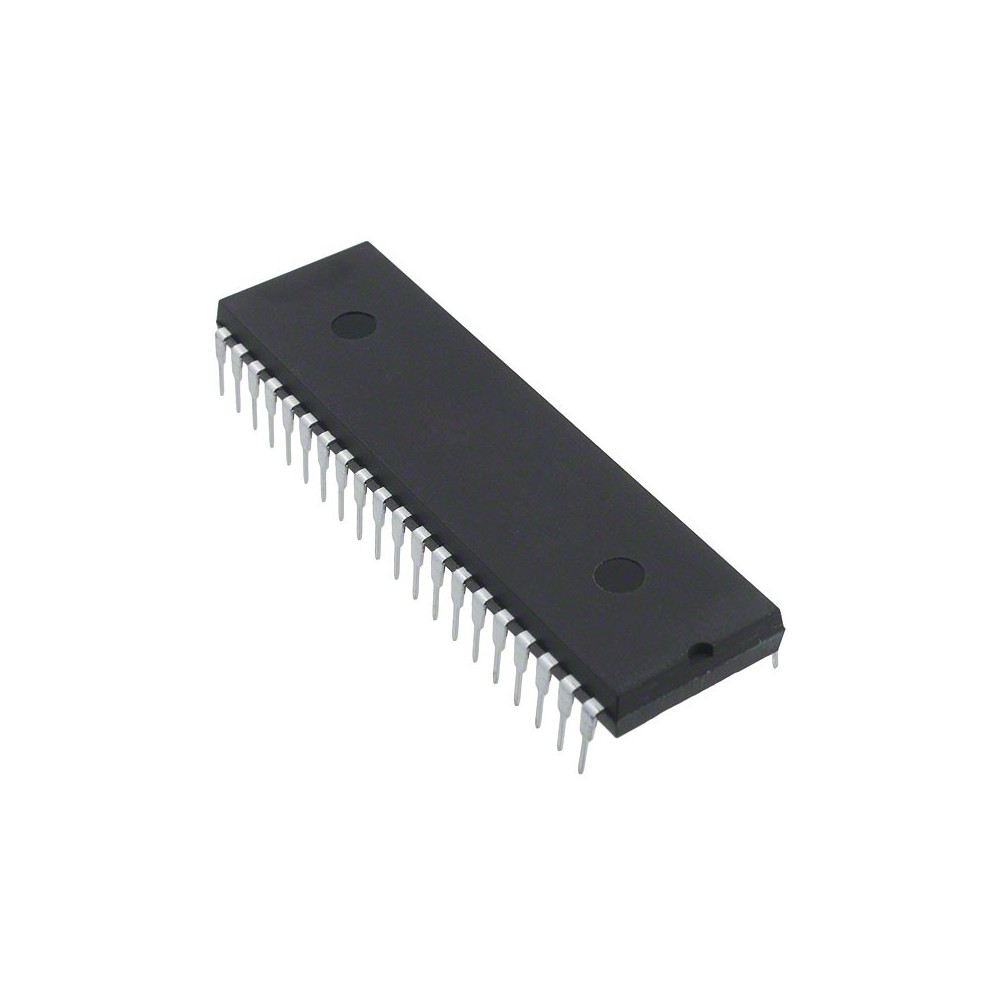

PIC18F4550-I/P IC MCU 8BIT 32KB FLASH 40DIP

Sold by
sherjaan
@ sherjaan

The PIC18F4550-I/P offers high computational performance with the addition of high endurance and enhanced flash program memory. In addition to these features, the PIC18F4550-I/P introduces design enhancements that make these microcontrollers a logical choice for many high performance, power sensitive applications.

 1,190.00

Out of stock

Category:

Features:

High-Performance RISC CPU

  • Source code compatible with the PIC16 and PIC17 instruction sets
  •  Linear program memory addressing to 32 Kbytes
  •  DC – 40 MHz osc./clock input
  •  16-bit wide instructions, 8-bit wide data path
  •  Priority levels for interrupts
  •  8 x 8 Single Cycle Hardware Multiplier
  •  16 kBytes Flash Program Memory
  •  2048 Byte RAM Data Memory
  •  256 Byte RAM Data Memory

Peripheral Features

  • High current sink/source 25mA/25mA
  •  Two 16-bit timer/counter (TMR1, TMR3)
  •  One 8-bit/16-bit timer/counter with prescaler
  •  One 8-bit timer/counter with 8-bit period register
  •  Capture 16-bit, max. resolution 6.25ns(TCY/16)
  •  Compare 16-bit, max. resolution 100ns
  •  3-wire SPI (supports all 4 SPI modes)
  •  I²C Master and Slave mode
  •  Addressable USART Module supports RS-485 and RS-232
  •  Parallel Slave Port (PSP) module
  •  Thirteen Channel 10-bit Analog-to-Digital Converter

Special Microcontroller Features

  • Power-On Reset
  •  Power-up Timer (PWRT) and Oscillator Start-Up Timer (OST)
  •  1,000 erase/write cycles Enhanced Flash Program Memory
  •  1,000,000 typical erase/write cycles EEPROM Data Memory
  •  Watchdog Timer (WDT) with its own On-Chip RC oscillator
  •  Programmable code protection
  •  Power saving SLEEP mode
  •  4X Phase Lock Loop (of primary oscillator)
  • Secondary Oscillator (32kHz) clock input
  •  Single supply 5V In-circuit Serial Programming via two pins
  •  In-Circuit Debug (ICD)

I/O and Packages

  • 35 I/O pins with individual direction control
  • 40-pin DIP
