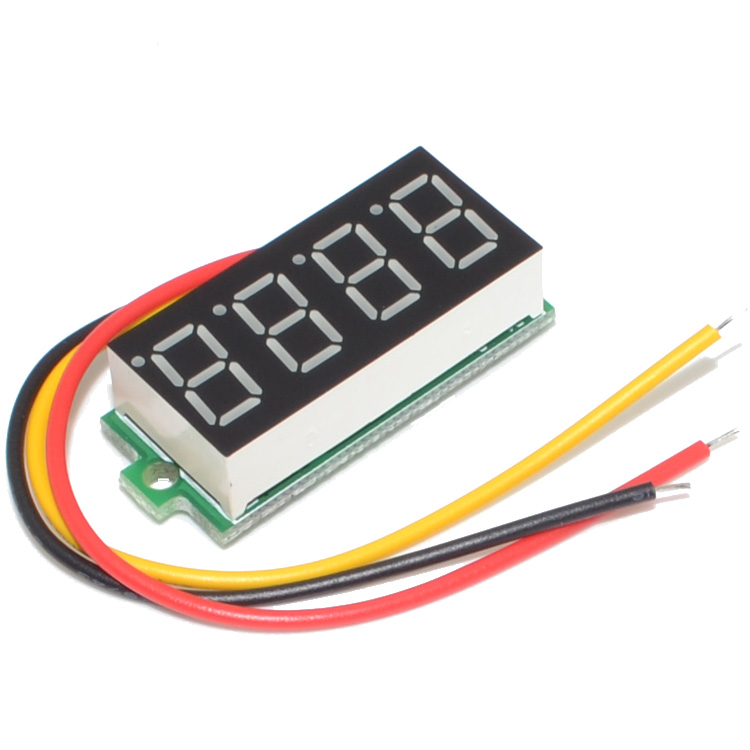

DIGITAL VOLTMETER MODULE
Sold by
@ expert peshawar Ask ownerexpert.peshawar
Put a voltage meter anywhere with this very handy display. These are often used by RC hobbyists for keeping track of batteries but we thought it would be great on a breadboard or enclosure. This is the 3-wire version of the volt meter, two wires are used to power it and the third wire is used for measurement. We also have a 2-wire version that measure it’s own power supply.
₨ 190.00
Dimensions:
PCB: 30mm x 20mm
Mounting Holes Distance: 28mm / 1.1″
Mounting Holes Diameter: 1.85mm / 0.07″
Display: 23mm x 14mm
Combined Depth: 11mm
Weight: 5.45g
Power Specifications:
4.5V to 28V DC power
0V to 99.9V DC measurement
0.1V precision
3-4mA draw
Green LED display
For use with positive voltages only!
