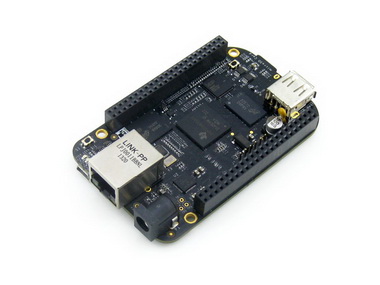

ELEMENT14 AM335X BEAGLE BONE BOARD BLACK
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
BeagleBone Black is a low-cost, community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable. Beaglebone comes with pre-installed Linux. When you connect the board to Host System (Windows PC), the board gets detected as USB Storage. All help and drivers can be accessed from the Board’s internal storage.
₨ 10,500.00
Technical Specifications
- Processor:TI Sitara AM335x, 1GHz, 2000 MIPS
- 1 GHz ARM ® Cortex-A8
- SGX530 Graphics Engine
- Programmable Real-Time Unit Subsystem
- Memory:
- SDRAM: 512MB DDR3L 800MHZ
- eMMC Flash:
- Rev B: 2GB (discontinued)
- Rev C: 4GB (as of 2014.05.21)
- SD / MMC Connector for microSD
- Power management: TPS65217CPMIC is used along with a separate LDO to provide power to the system
- Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
- Power Source
- miniUSB USB or DC Jack
- 5VDC External Via Expansion Header
- Connectivity
- High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
- High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS / FS / HS
- Serial Port:. UART0 access via 6 pin 3.3V TTL Header Header is populated
- 10/100M Ethernet (RJ45)
- User Input / Output
- Reset Button
- Boot Button
- Power Button
- LED power indicator
- 4 user configurable LEDs
- Video / Audio Interfaces
- HDMI D type interface
- LCD interface
- Stereo audio over HDMI interface
- Expansion Interfaces
- LCD, UART, eMMC
- ADC, I2C, SPI, PWM
- Operating Power:5V 0.35A
- Board Size:3.4 x 2.1
