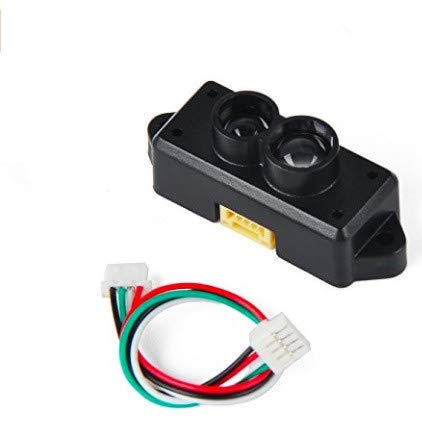

Lidar Range Finder Sensor Module for Pixhawk and Arduino with Pixhawk Cable Benewake TFmini Drone

Features:

• Operating Range : 0.3-12m
• Maximum operating range at 10% reflectivity : 5m
• Applicable voltage range : 4.5-6V
• Average power consumption : 0.12W
• Acceptance angle : 2.3°
• Communication interface : UART
• Electromagnetic Compatibility(EMC):EN 55032 Class B
• Baud rate:115200
• Data bit:8
• Stop bit:1
• Parity bit:0
• Minimum resolution ratio : 5mm
• Frequency : 100Hz
• Wavelength:850nm
• Operating temperature : 20-60C
• Light sensitivity : 70,000lux
• Accuracy : 1% (less than 6m), 2% (6m-12m)
• Size : 42mm * 15mm * 16mm
• Weight : 6.1g
• Main applications:Drone altitude holding and terrain following Machine control and safety sensor Robot distance detection
• Certification:CE,FCC,ROHS
