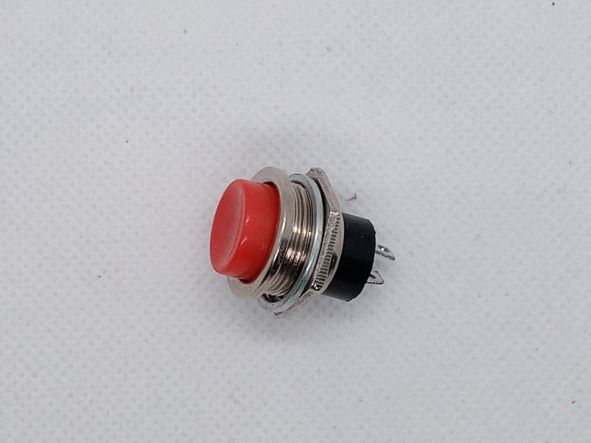

Momentary SPST Push Button AC 6A/125V 3A/250V

Momentary SPST Push Button is rated as AC 6A/125V 3A/250V, This a type of switch that is commonly use in industrial and commercial applications. It is a momentary switch, which means that it only completes a circuit when it is pressed. When the button is released, the circuit is broken. This type of switch is often used for things like activating a light or a motor for a short period of time.

The “SPST” in the name stands for “single-pole, single-throw.” This means that the switch has one pole (terminal) and one throw (position). When the button is pressed, the switch connects the pole to one terminal. When the button is released, the switch disconnects the pole from the terminal.

The “momentary” part of the name means that the switch only completes the circuit for as long as the button is pressed. This is in contrast to a latching switch, which will stay in the “on” position even after the button is released.

The “AC 6A/125V 3A/250V” in the name refers to the switch’s rating. The switch can handle a maximum current of 6 amperes at 125 volts AC or 3 amperes at 250 volts AC.

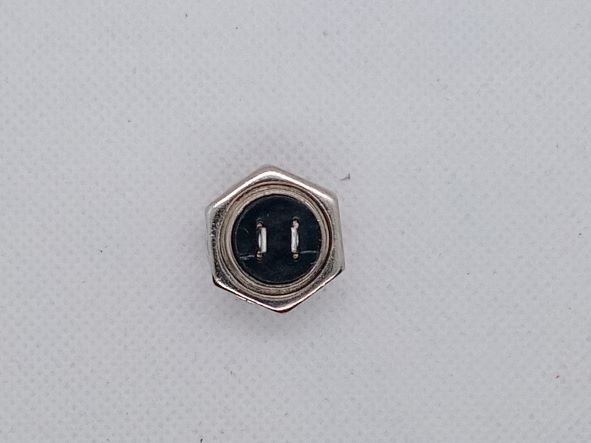

The switch is typically made of plastic or metal and has a round or square button. The button is typically colored red, green, yellow, or black. The switch has two terminals, which are typically labeled “COM” and “NO”. The “COM” terminal is the common terminal, and the “NO” terminal is the normally open terminal. When the button is pressed, the switch connects the “COM” and “NO” terminals, completing the circuit. When the button is released, the switch disconnects the “COM” and “NO” terminals, breaking the circuit.

Features : –

There are many benefits to using a momentary SPST Switch button AC 6A/125V 3A/250V switch. Here are a few of the most common benefits:

• Safety: Momentary switches are safer than latching switches because they cannot be accidentally turned on or off. This is important in applications where there is a risk of electric shock or other injury.
• Control: Momentary switches give you more precise control over your devices. You can turn them on or off for a specific amount of time, or you can use them to trigger other events.
• Durability: Momentary switches are typically made from durable materials, such as metal or plastic. This makes them resistant to wear and tear, even in harsh environments.
• Cost-effectiveness: Momentary switches are relatively inexpensive, making them a cost-effective option for many applications.

Momentary SPST Push Button AC 6A/125V 3A/250V Specifications : –

Here are the specifications of a momentary SPST Switch button AC 6A/125V 3A/250V switch:

• Type: Momentary SPST (single-pole, single-throw)
• Voltage rating: AC 6A/125V or AC 3A/250V
• Current rating: 6 amperes at 125 volts AC or 3 amperes at 250 volts AC
• Mounting: Panel mount
• Terminals: 2, typically labeled “COM” and “NO”
• Button: Round or square, typically colored red, green, yellow, or black
• Material: Plastic or metal

Momentary SPST Push Button AC 6A/125V 3A/250V Applications : –

Here are some of the common uses of momentary SPST Switch button switches:

• Powering on or off devices: Momentary SPST push button switches are often used to power on or off devices, such as lights, motors, and appliances.
• Starting or stopping processes: Momentary SPST push button switches can be used to start or stop processes, such as recording audio or video, or running a machine.
• Triggering events: Momentary SPST push button switches can be used to trigger events, such as taking a picture, opening a door, or sending a signal to another device.
• Emitting signals: Momentary SPST push button switches can be used to emit signals, such as a light, a sound, or a pulse of electricity.

Package : –

1 x Momentary SPST Push Button AC 6A/125V 3A/250V
