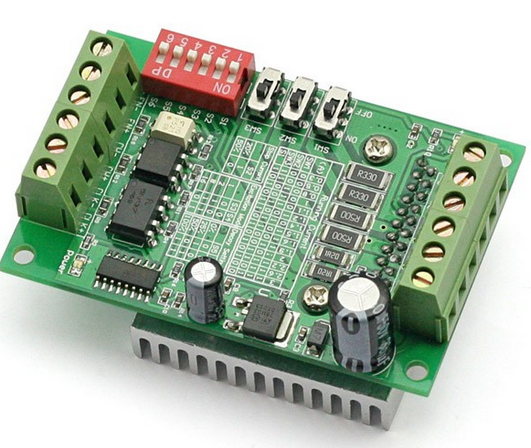

TB6560 Stepper Motor Driver Controller 3A CNC Controller

Sold by
sherjaan
@ sherjaan

The TB6560 is a stepper motor driver that can use to control stepper motors with a wide range of voltages and currents. TB6560 is a popular choice for a variety of projects, including 3D printers, CNC machines, and robotic arms.

 950.00

Out of stock

Category: Tag:

The TB6560 is a stepper motor driver that can use to control stepper motors with a wide range of voltages and currents. TB6560 is a popular choice for a variety of projects, including 3D printers, CNC machines, and robotic arms.

TB6560 Stepper Motor Driver Controller 3A CNC Controller Single Axis Stepper Stepping Motor Driver Board will significantly increase torque and ease of configuration of larger motors. Cheap and great driver for CNC or 3D printer.

The TB6560 stepper motor driver is a very basic driver designed to be used with 42,57,86 steppers within 3A and 5V. It can be utilized with 2 or 4-phase motors with 4 or 6 wires, and offers the new Toshiba TB6560AHQ chip with a 6N137 high-speed Optocoupler – designed to provide high speed without step out.

The TB6560-3 Axis Stepper Motor Driver is a excellent micro stepping driver that use TOSHIBA TB6560 Chip, based on pure-sine current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motor.

TB6560 Stepper Motor Driver is for axis control with Input signal high-speed opto-coupler isolation, large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions.

Features: –

  • Low cost and good high-speed torque
  • Supply voltage up to +32 VDC
  • Output current up to 3.0A
  • Pulse frequency up to 20 KHz
  • Suitable for 2-phase and 4-phase motors
  • Over-voltage and short-circuit protection
  • 7 output current choices, max 3200 steps/rev
  • Automatic idle-current reduction
  • Slim size (96x61x37mm)

TB6560 Stepper Motor Driver Specifications: –

  • Operating voltage :DC 10V-35V
  • Very easy to use, no instructions, all of use are marked on the board
  • With large heat sink to ensure good heat dissipation
  • Input signal high-speed opto-coupler isolation, guarantee not losing steps
  • Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
  • Attenuation model adjusted for all the motors can be locked when no noise
  • Working voltage: DC 10V-35V. Recommend Switching Power Supply DC24V
  • 6N137 high-speed Opto-Coupler, to ensure a high speed without step out.
  • New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
  • Rated output: ± 3A ,peak 3.5A.
  • For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  • The Automatic half-decay adjustable.
  • Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  • Volume: 50 x 75 x 35 ( MM)
  • The current level adjustable to meet your various application needs.
  • Thick tooth radiators, good heat dissipation.

TB6560 Stepper Motor Driver Applications: –

  • Suitable for a wide range of stepping motors from NEMA size 17 to 23.
  • It can be used in various kinds of machines, such as X-Y-Z tables,
  • labeling machines,
  • laser cutters,
  • engraving machines,
  • pick-place devices, and so on.
  • Particularly adapt to the applications desired with low vibration, high speed and high precision.
Datasheet: –

allelectronics.com/…cs2018/spec/SMC-5.pdf

Package: –

1 x TB6560 Stepper Motor Driver Controller 3A CNC Controller
