Dust Sensor GP2Y1010AU0F Optical Dust Sensor Module

Sold by
sherjaan
@ sherjaan

GP2Y1010AU0F is an optical air quality sensor, or may also known as optical dust sensor, is designed to sense dust particles.

 1,300.00

In stock

GP2Y1010AU0F is an optical air quality sensor, or may also known as optical dust sensor, is designed to sense dust particles.

compact optical dust sensor is designed to detect fine particles like cigarette smoke and dust. This dust sensor comes with a 6-pin, 1.5 mm pitch mating connector and cable, 150 ohm resistor, and a 16 V 220 uF capacitor.

This Dust Sensor GP2Y1010AU0F is the device to detect house dust, cigarette smoke, etc. and designed as a sensor for automatic running of application like air purifier and air conditioner with air purifier function.

This product is an optical particle sensor useful to measure air quality. It can be integrated into your innovative projects with the help of which you can see the unpolluted areas in which to relax peacefully.

An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in air. It is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.

The consumption of this sensor is very small, about 20mA. It also lends itself to low power applications, reaching an average consumption of 500uA – 1000uA because there is no need to be continually switched on.

Dust Sensor GP2Y1010AU0F has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.

To interface with the sensor you need to connect to its 6-pin, 1.5mm pitch connector; we do have a mating connector for this.

Features: –

  • PWM output mode
  • Compact, light weight
  • Easy to install
  • A single power supply
  • Low prices.

Dust Sensor GP2Y1010AU0F Specifications: –

  • Max Consumption Current: 20 mA
  • Supply Voltage: 5 V to 7 V
  • Operating Temperature: -10° C to +65° C
  • Weight: 25 g
  • Recommended power voltage: 5V + -0.5V DC;
  • Detected minimum particles: 0.8 microns;
  • Maximum supply voltage: 7V DC;
  • Sensitivity: 0.5 V / (0.1 g / m & lt; 3 & gt;);
  • Output voltage (no particles in the air): 0.9V;
  • LED current: 10mA (max 20mA);
  • Total current consumption: 11mA (max 20mA);
  • Recommended pulse duration: 10 ms;
  • Recommended pulse length: 0.32 ms.
  • Dimensions: 46 mm x 30 mm x 17.6 mm

Dust Sensor GP2Y1010AU0F Technical Parameters

  • Optical principle , be able to detect more than 1 micron dust particles.
  • The two output modes, solve different sensitivity requirements.
  • high output signal Vout clean environment (4V)
  • 3.5VDC power supply
  • Detecting particles range : up to 8000pcs / 283ml (1um particles above )
Applications: –
  • Air purifiers and air cleaners
  • Air-conditioning.
  • The air quality monitoring instrument.
  • Air conditioning and other related products.
Datasheet: –

global.sharp/…sheet/gp2y1010au_appl_e.pdf

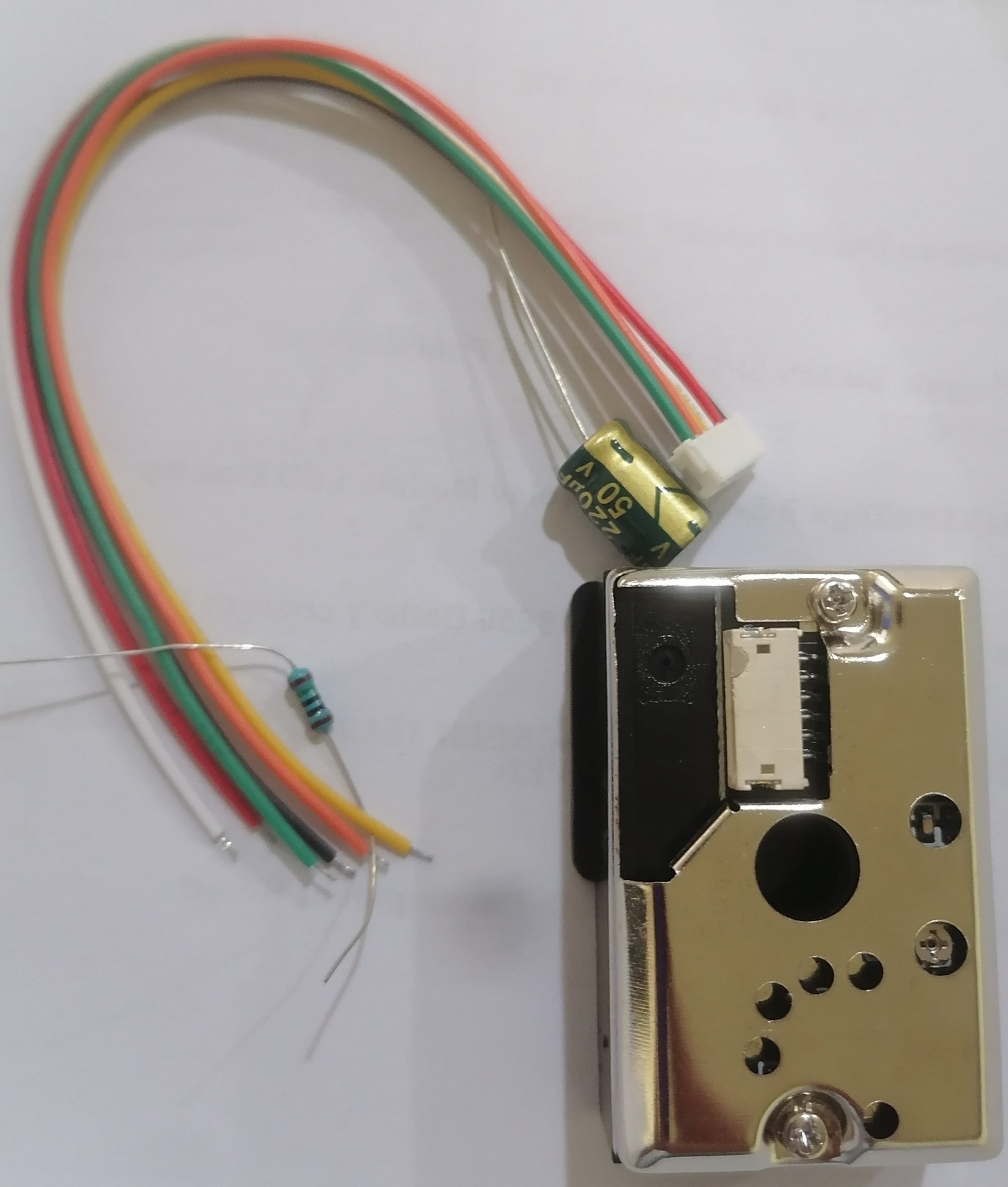

Package: –
  • GP2Y1010AU0F Dust Sensor
  • 16 V, 220 uF capacitor
  • 150 ohm resistor
  • 6P cable
