VL53L0X Time-of-Flight Distance Sensor GY-530 200cm Max

@ MODERN HALLROAD

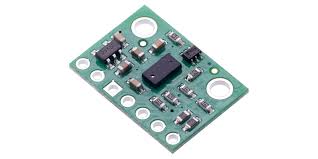

This sensor is a carrier/breakout board for ST’s VL53L0X laser-ranging sensor, which measures the range to a target object up to 2 m away. The VL53L0X uses time-of-flight measurements of infrared pulses for ranging, allowing it to give accurate results independent of the target’s color and surface. Distance measurements can be read through a digital I²C interface. The board has a 2.8 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.6 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

 550.00

Out of stock

Specifications:

Size: 0.5″ × 0.7″ × 0.085″1
Weight: 0.5 g1

Resolution: 1 mm
Maximum range: 200 cm2
Interface: I²C
Minimum operating voltage: 2.6 V
Maximum operating voltage: 5.5 V
Supply current: 10 mA3
