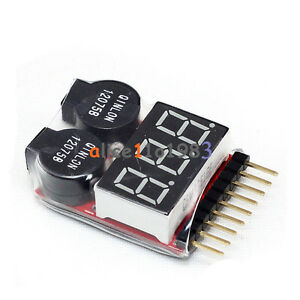

1-8S Lipo/Li-ion/Fe Battery Voltage Tester with Buzzer Alarm

1-8S Lipo/Li-ion/Fe Battery Voltage Tester functions as an alarm/checker voltage on 1-8S Lipo/Li-ion/LiMn/Li-Fe batteries. So that the battery lasts longer and doesn’t swell quickly, because the recommended limit for LIPO battery discharge voltage is at least 3.6 – 3.7V, LI-ION 3.6V, LI-FE 3.1V. If the battery often discharges below the recommended voltage, it can cause the battery life to not last long.
The buzzer alarm sound is very loud, so it can be heard even if the RC is far from the control center

The 1-8S Lipo/Li-ion/Fe Battery Voltage Tester is used to detect 1S ~ 8S lithium batteries, and automatically detect the voltage of each cell lithium battery and total voltage. Supports reverse connection protection.
It allows you to work anywhere in the understanding of the state of your battery, so your battery will not overcharge and over discharge or cause damage.
When the voltage drops below the set value, the buzzer sounded, the red LED flashes; factory default setting is 3.3V, press the button to change the voltage setting, automatically save the user’s current settings.

This 1-8S Lipo/Li-ion/Fe Battery Voltage Tester features 9 pin and can test the 1-8s Li battery and you can use it to test.
This Li battery voltage checker can test single cell voltage or you can use it to test the total battery voltage.
This 1-8S Lipo/Li-ion/Fe Battery Voltage Tester total voltage measuring range is 0.5V~36V and is small and light weight, you can conveniently carry it.
This battery voltage tester features low voltage alarm and when the voltage reach below the setting(pre-setting is 3.3V),then it can buzzer and the red LED light will turn on.
This battery tester has a button on the side, which allows you to push it and set and save the low voltage alarm.

Features: –

• Total voltage display range: 0.5~36V 1S test mode voltage range: 4-15V Low voltage alarm mode for 2-8S Alarm set value range:OFF~2.7~3.8V
• Use for 1-8S Lipo/Li-ion/LiMn/Li-Fe Voltage detection precision: +_0.01V. Unit voltage display range: 0.5~4.5V Total voltage display range: 0.5~36V 1S test mode voltage range: 4-15V Low voltage alarm mode for 2-8S Alarm set value range:OFF~2.7~3.8V
• Alarm set value range:OFF~2.7~3.8V
• Package Included: 1 x 1-8S Lipo/Li-ion/Fe Battery Low Voltage Meter Tester LED Buzzer Alarm.

1-8S Lipo/Li-ion/Fe Battery Voltage Tester Specifications: –

• Use for 1-8s Lipo/Li-ion/LiMn/Li-Fe

• Voltage detection precision: +_0.01v

• Unit voltage display range:0.5-4.5v

• Total voltage display range:0.5-36v

• 1s test model voltage range:3.7v-30v

• Low voltage alarm mode for 2-8S

• Alarm set value range: OFF 2.7-3.8V
• Size: 40mm x 25mm x 11mm

• Original box: NO

• Net weight: 9g

Package: –

1 x Battery Voltage Tester and Low Voltage Buzzer Alarm
