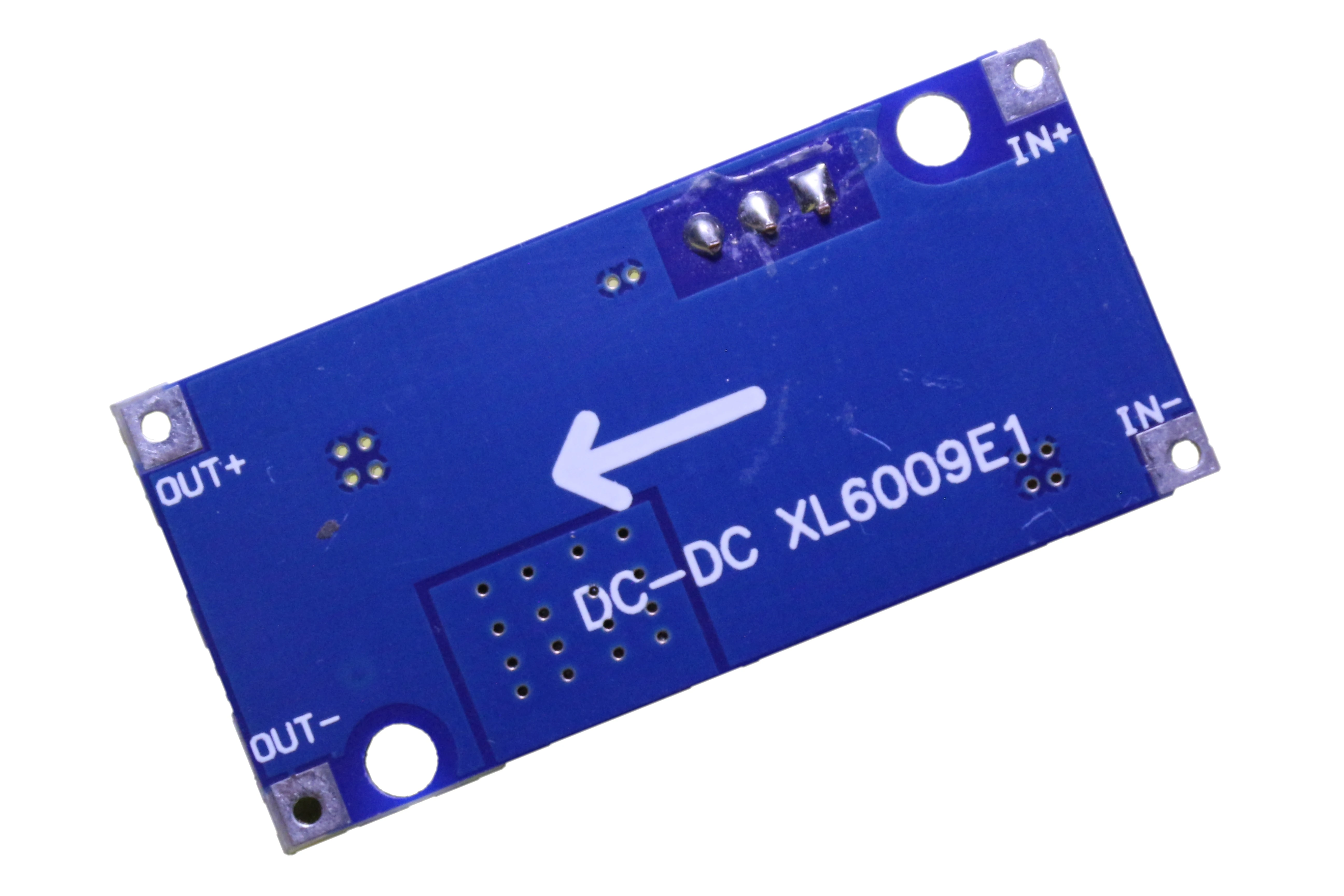

XL6009 DC-DC Buck Boost Converter Module 3V-32V to 5V-35V 4A

Sold by
sherjaan
@ sherjaan

The XL6009 module is a DC-DC step-up (boost) converter module that operates at a switching frequency of 400kHz. XL6009 Step Up Down Buck Boost Converter Module is a non-isolated converter, which means that the input and output voltages are not electrically isolated from each other.

 220.00

In stock

The XL6009 module is a DC-DC step-up (boost) converter module that operates at a switching frequency of 400kHz. XL6009 Step Up Down Buck Boost Converter Module is a non-isolated converter, which means that the input and output voltages are not electrically isolated from each other.

The XL6009 module has an adjustable output voltage, which can be set from 5V to 35V. The input voltage range is 3V to 32V. The maximum output current is 4A. The XL6009 Boost Converter module is a versatile and powerful tool that can use in a variety of applications.

The 4A XL6009 module is a relatively easy to use module. The input and output voltages are connected to the appropriate terminals on the module. The output voltage can be adjusted by turning the potentiometer on the module.

The XL6009 module is a useful and versatile tool that can use in a variety of applications. 6009 Boost Converter Module is a good choice for anyone who needs to boost the voltage of a battery, create a variable voltage power supply, or charge a battery.

The operating voltage of the XL6009 module is 3V to 32V. The output voltage can adjust from 5V to 35V. The higher the input voltage, the higher the output voltage. The maximum output current is 4A.

The XL6009 module works on the principle of a DC-DC step-up converter. XL6009 DC DC Step Up Module is a step-up converter, which means that it increases the input voltage to a higher output voltage.

The XL6009 DC DC Step Up Module uses a switching regulator to convert the voltage. The XL6009 module has a feedback loop that controls the output voltage. The feedback loop compares the output voltage to a reference voltage.

Features : –

The XL6009 Step up module is relatively easy to use, even for beginners. XL6009 Buck Boost Converter is a small and affordable device, making it a good choice for budget-minded projects.

The XL6009 Step Up Down Buck Boost Converter Module can operate with an input voltage of 3V to 32V. The conversion efficiency of the XL6009 module can be up to 94%, which means that only 6% of the input power is lost in the conversion process. This makes it a very efficient way to boost the voltage of a battery or create a variable voltage power supply. The XL6009 module offers a number of benefits, including:

  • High efficiency
  • Wide input voltage range
  • Adjustable output voltage
  • Small size and low cost
  • Easy to use

XL6009 DC-DC Buck Boost Specifications : –

The XL6009E1 Module has a switching frequency of 400kHz. The XL6009 DC DC Step Up Module has a voltage regulation of ±0.5%. Voltage regulation is the ability of the module to maintain a constant output voltage when the input voltage changes.

The XL6009 Boost Module has a maximum output current of 4A. The XL6009 Buck Converter module has a conversion efficiency of up to 94%. The conversion efficiency is the percentage of the input power that is converted to output power. here are some of the specifications of the XL6009 module:

  • Input voltage: 3V to 32V
  • Output voltage: 5V to 35V (adjustable)
  • Maximum output current: 4A
  • Conversion efficiency: Up to 94%
  • Load regulation: ±0.5%
  • Voltage regulation: ±0.5%
  • Switching frequency: 400kHz
  • Size: 43mm x 21mm x 14mm

XL6009 DC-DC Buck Boost Applications : –

The XL6009 Buck Converter module can operate with an input voltage of 3V to 32V. XL6009 DC-DC Booster is a good choice for anyone who needs to boost the voltage of a battery, create a variable voltage power supply, or charge a battery.

The XL6009 Buck Boost is a relatively easy to use module. The input and output voltages connected to the appropriate terminals on the module. The output voltage can adjust by turning the potentiometer on the module. The XL6009 Buck Converter is a versatile and powerful tool that can use in a variety of applications. Some of its common uses include:

  • Boosting the voltage of a battery to power a device
  • Creating a variable voltage power supply
  • Charging a battery
  • Driving a LED strip
  • Powering a small motor
  • Making a DIY power supply
  • Experimenting with electronics
Package : –

1 x XL6009 DC-DC Buck Boost
