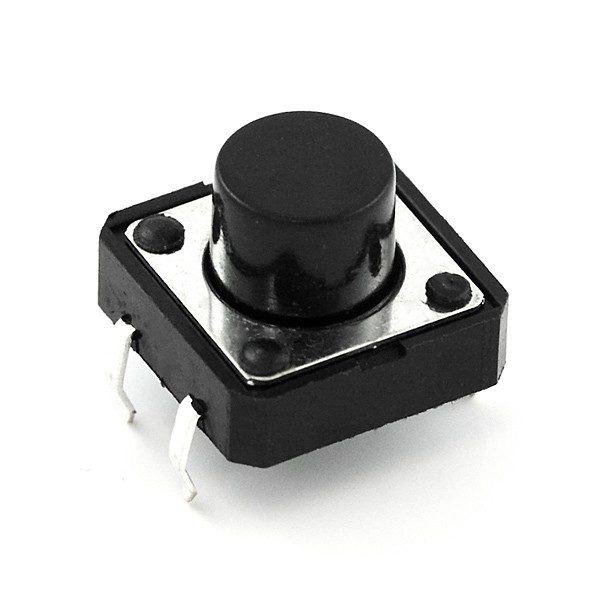

12 X 12mm X 7.5mm PUSH BUTTON

@ MODERN HALLROAD

A push-button (also spelled pushbutton) or simply button is a simple switch mechanism for controlling some aspect of a machine or a process. Buttons are typically made out of hard material, usually plastic or metal.

 10.00

Category:

Specifications:

  • Circuit : SPST-NO
  • Switch Function : Off-Mom
  • Contact Rating @ Voltage : 0.05A @ 12VDC
  • Actuator Type : Standard
  • Mounting Type : Through Hole
  • Actuator Height off PCB, Vertical : 7.50mm
  • Outline12.00mm x 12.00mm
  • Operating Force : 160gf
  • Operating Temperature : -20°C ~ 70°C
  • Actuator Material : Polyoxymethylene (Acetal) (POM)
  • Switch Travel : 0.30mm
  • Mechanical Life : 100,000 Cycles
