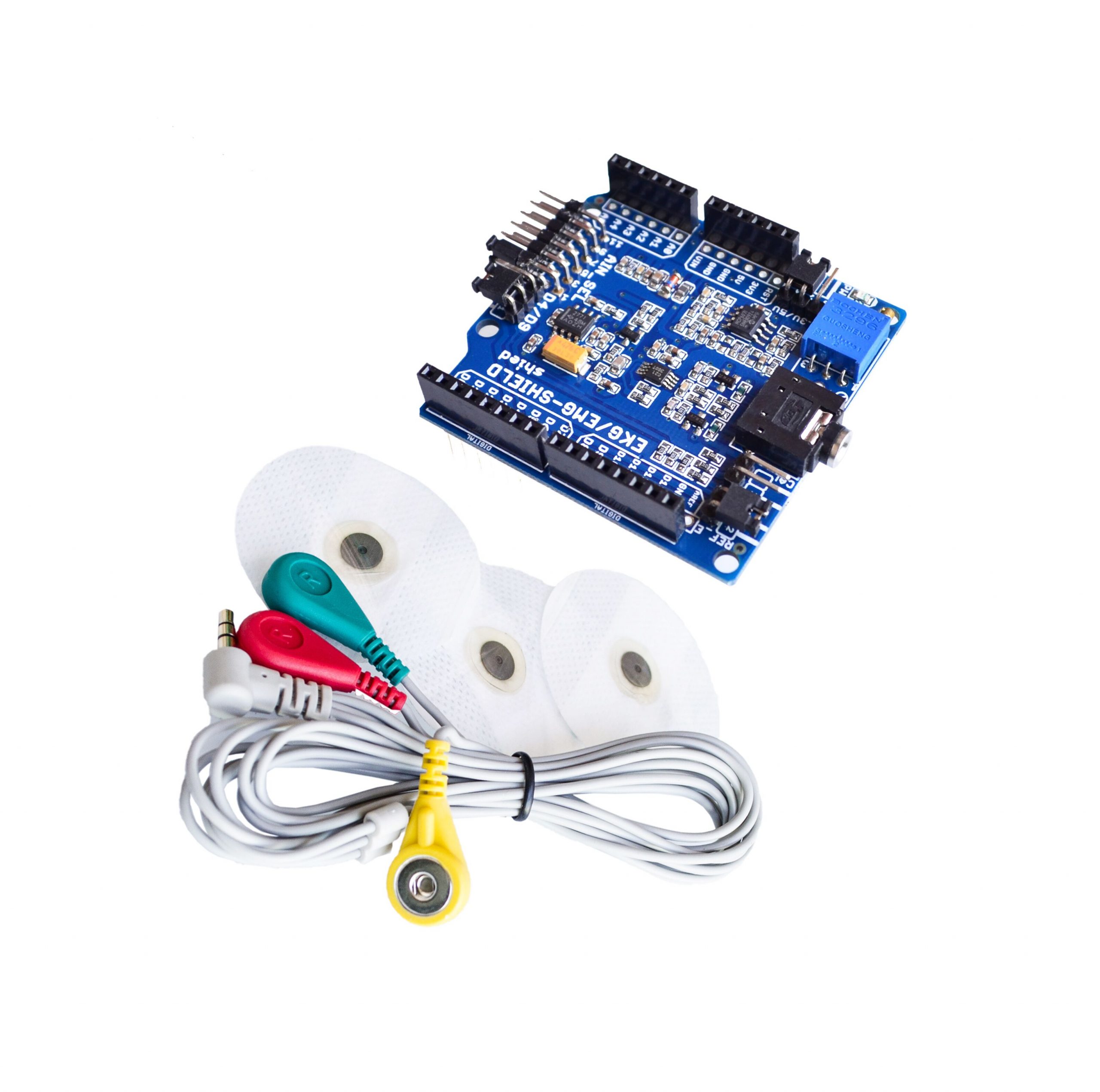

EMG ECG ARDUINO SHIELD WITH ELECTRODE PROB
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
This is an EKG/EMG shield which allows Arduino like boards to capture Electrocardiography Electromiography signals. The shield opens new possibilities to experiment with bio feedback. You can monitor your heartbeat and log your pulse, recognize gestures by monitoring and analize the muscule activity as it is done in this project.
₨ 4,500.00
Detail Description:
SHIELD-EKG-EMG converts the analog differential signal (the ECG/EMG bio potentials generated by muscles), attached to its CH1_IN+/CH1_IN- inputs, into a single stream of data as output. The output signal is analog and have to be discretized further with aim to give the option of digital processing. Typically, this is done via dedicated ADC embedded in the MCU of the base board (like: OLIMEXINO-328, OLIMEXINO-32U4, OLIMEXINO-STM32, etc). In the demo example we have provided, “ShieldEkgEmgDemo.ino”, we have used 10-bit ADC with 256Hz sampling rate.
