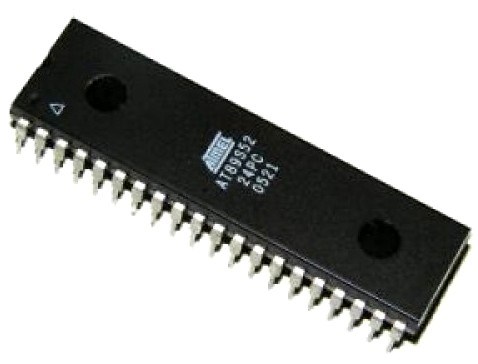

IC Atmel AT89S52 8-bit Microcontroller with 8K Bytes

IC Atmel AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.

The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer.

AT89S52 is designed with static logic for operation down to zero frequency and supports two software selectable power saving modes.

By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, the Atmel AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications

The Atmel AT89S52 is an 8051 based Full Static CMOS controller with Three-Level Program Memory Lock, 32 I/O lines, 3 Timers/Counters, 8 Interrupts Sources, Watchdog Timer, 2 DPTRs, 8K Flash Memory, 256 Bytes On-chip RAM.

This micro controller AT89S52 finds its applications from domestic devices to the industrial level to provide digital control to embedded systems. The Microcontroller also has Operating mode, Idle Mode, and Power-down mode which makes it suitable for battery-operated applications.

The AT89S52 micro controller is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory.

The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout.

Features: –

• Compatible with MCS-51® Products
• 8K Bytes of In-System Programmable (ISP) Flash Memory – Endurance: 1000 Write/Erase Cycles
• 4.0V to 5.5V Operating Range
• Fully Static Operation: 0 Hz to 33 MHz
• Three-level Program Memory Lock
• 256 x 8-bit Internal RAM
• 32 Programmable I/O Lines
• Three 16-bit Timer/Counters
• Eight Interrupt Sources
• Full Duplex UART Serial Channel
• Low-power Idle and Power-down Modes
• Interrupt Recovery from Power-down Mode
• Watchdog Timer
• Dual Data Pointe

IC Atmel AT89S52 Specifications : –

• 40-pin 8051 Series Microcontroller
• Flash Program Memory: 8 kbytes
• RAM Data Memory: 256 bytes
• I/O Pins: 32
• Timers: Three 16-bit
• UART: Yes Full Duplex
• External Oscillator: up to 24MHz

IC Atmel AT89S52 Applications : –

This microcontroller finds its applications from domestic devices to the industrial level to provide digital control to embedded systems.

• Multiple DIY Projects
• Very good choice if you are learning Atmel
• Projects requiring Multiple I/O interfaces and communications
• Replacement for Arduino Module
• Ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Datasheet: –

AT89S52 Datasheet

Package: –

1 x IC Atmel AT89S52 8-bit Microcontroller with 8K Bytes
