Name: Lithium Battery Voltage Indicator Display 3S
SKU: 15517
Price: 250.00 PKR
Availability: OutOfStock

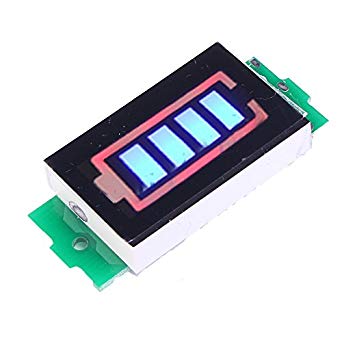

Lithium Battery Voltage Indicator Display 3S provide a quick visual reference of the charge status (capacity) of 18650 Lithium-ion batteries, as well as other lithium batteries with a maximum voltage of 3.7volts per cell.

3s Battery capacity Indicator display module is perfect for DIY power supplies, battery chargers, RC and electric vehicles, to provide quick and easy-to-read voltage status of the battery.

Simply connect the Lithium Battery Voltage Indicator Display 3S to the positive and negative connections of your battery or battery pack, and the charge status of the battery is displayed in real-time using a visual bar display.

The display outline color is red, and the display bars are blue.

Simply connect the positive terminal to Vcc and negative terminal to the ground of your Lithium battery, the digital tube will display the present voltage of the lithium battery with red outline and block blue LED indicator. Now you can easily detect your current voltage of your LiPo battery when using it in any application without worrying. Ease the user to be more prepared to recharge the LiPo battery when runout of power.

Lithium Battery Voltage Indicator Display 3S

25% When the battery voltage is over 9.9V, it will light up 1 block power amount
half When the battery voltage is over 10.5V it will light up 2 block power amount
75% When the battery voltage is over 11.1V, it will light up 3 block power amount
100% When the battery voltage is over 11.7V, it will light up 4 block power amount

When the battery voltage is under 9.9V, 4 close presentations will be off and Only external Red Line will On; it speaks to the battery is under 9.9V, and you can charge the battery.

Specifications: –

Battery sort power amount show
Wide application fields: lithium battery
Using Method: connect show load up positive and negative port with tried battery positive and negative port, a digital tube will show ongoing battery power amount
Digital Color: outline red, display square blue (when battery power amount is full, it will be all on)
Size : 31×20mm/1.22×0.79in (Approx.)

Lithium Battery Voltage Indicator Display 3S Features: –

The 3S battery capacity indicator module can be used to display lithium battery, lead acid battery, and Ni-MH battery.
Clear and Bright Display, outline Red, display block Blue. The different electricity quantity will illuminate corresponding blocks electricity quantity.
How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test. The digital tube displays the real-time battery power.
Widely Applications: can be widely applied to portable mobile equipment, electro mobile, balance car, cleaning machine, measuring equipment etc. battery capacity indicator.

Note: The electricity quantity parameter is a reference value, there will be about 2% error range.
