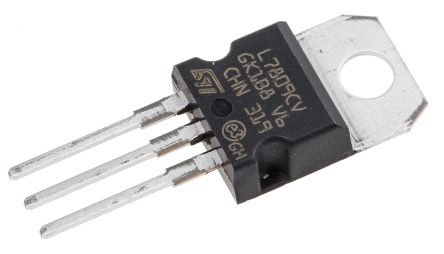

LM7809 Voltage Regulator IC 9V/1A

@ MODERN HALLROAD

The LM7809 Voltage Regulator IC is a simple and effective way to regulate a 9-volt power supply. LM7809 linear Voltage regulator is a popular choice for a variety of applications, including powering digital circuits, providing a regulated power supply for analog circuits, and charging batteries.

 30.00

In stock

Category: Tag:

The LM7809 Voltage Regulator IC is a simple and effective way to regulate a 9-volt power supply. LM7809 linear Voltage regulator is a popular choice for a variety of applications, including powering digital circuits, providing a regulated power supply for analog circuits, and charging batteries.

The LM7809 is a fixed-voltage integrated-circuit (IC) voltage regulator designed for a wide range of applications. Voltage Regulator IC LM7809 provides a constant output voltage of 9 volts for a varied input voltage of 11 to 35 volts. The LM7809 Voltage Regulator IC can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation.

The LM7809 is a linear regulator and can output up to 1.5 amps of current, but it is recommended to use a heat sink if the regulator is going to use in a high-current application. If the input voltage is too high, the regulator may overheat and damage itself. Therefore, it is important to use a heat sink if the input voltage is going to be high.
The LM7809 voltage regulator has a minimum input voltage of 11 volts and a maximum input voltage of 35 volts. If the input voltage is less than 11 volts, the regulator will not be able to provide a stable output voltage.

The Voltage Regulator IC LM7809 also has a dropout voltage of 2 volts. This means that the input voltage must be at least 2 volts higher than the output voltage in order for the regulator to function properly.

The LM7809 voltage regulator works by using a pass transistor to regulate the output voltage. The pass transistor is a bipolar junction transistor (BJT) that is biased in its active region. This means that the transistor is conducting current, but it is not saturated.

Features : –

The LM7809 IC is a popular voltage regulator that is use in a wide variety of electronic devices. Some of the benefits of using the LM7809 include:

  • Simple to use
  • Reliable
  • Efficient
  • Affordable
  • Wide input voltage range
  • High output current
  • Robust construction

LM7809 Voltage Regulator IC Specifications : –

The LM7809 IC is a linear voltage regulator, which means that it dissipates heat as it regulates the output voltage. If the input voltage is too high, the regulator may overheat and damage itself. Therefore, it is important to use a heat sink if the input voltage is going to be high. here are the specifications of the IC LM7809:

  • Output voltage: 9 volts
  • Input voltage: 11 to 35 volts
  • Output current: 1.5 amps
  • Dropout voltage: 2 volts
  • Quiescent current: 8 milliamps
  • Operating temperature: -55 to +125 degrees Celsius
  • Package: TO-220

Here are some additional specifications of the IC LM7809:

  • Ripple rejection: 55 dB
  • Short-circuit protection: Yes
  • Thermal shutdown: Yes
  • Output noise: 100 microvolts peak-to-peak
  • Surge current: 2.2 amps

LM7809 Voltage Regulator IC Applications : –

The LM7809 IC is a versatile and reliable voltage regulator that is well-suited for a variety of applications. If you need a simple and efficient way to regulate a 9-volt power supply, the LM7809 is a good option to consider. Some of the applications of the IC LM7809 include:

  • Powering digital circuits
  • Providing a regulated power supply for analog circuits
  • Charging batteries
  • Driving LEDs
  • Polarity-reversal protection
  • Dual supply
  • Adjustable output voltage
Package : –

1 x LM7809 Voltage Regulator IC
