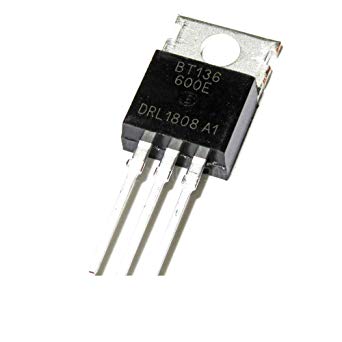

BT136-600E 4 Quadrant TRIAC Thyristor 600V/4A

The BT136-600E TRIAC is a 4 quadrant, medium-power switching TRIAC that can handle voltages up to 600V and currents up to 4A. TRIAC BT136-600E is a bidirectional device, which means that it can conduct current in both directions. This makes it ideal for applications where AC power needs to be controlled, such as light dimmers, motor speed controllers, and noise coupling circuits.

The BT136-600E TRIAC is a very useful device for controlling AC power. TRIAC BT136-600E can use to turn on and off AC loads, and it can also use to control the amount of current that flows through an AC load. This makes it a versatile and powerful device for a wide variety of applications.

This BT136 TRIAC has a low gate threshold voltage of 1.4V, which means that it can easily trigger by a digital circuit. TRIAC BT136 also has a low holding current of 2.2mA, which means that it consumes very little power when it is turn on.

The working principle of the TRIAC BT136-600E is base on the principle of a thyristor. A thyristor is a semiconductor device that can turn on by a small current pulse and will remain turn on until the current drops below a certain level. The TRIAC BT136-600E has three terminals: gate, anode, and cathode.

To turn on the TRIAC BT136-600E, a positive or negative current pulse must be applied to the gate terminal. Once the gate pulse is applied, the TRIAC will turn on and will remain turned on until the current drops below the holding current. The holding current is typically very small, in the order of milliamperes.

Once the TRIAC BT136-600E is turn on, it will conduct current in both directions.

Features : –

The BT136 is a thyristor, also known as a TRIAC, which is a four-quadrant, bidirectional switching device. This means that BT136 can conduct current in both directions and can be turned on by a positive or negative gate pulse. The TRIAC BT136 has a number of benefits that make it a popular choice for a variety of applications. These benefits include:

• High voltage and current ratings
• Low gate threshold voltage
• Low holding current
• Bidirectional switching
• Low EMI
• Long lifetime
• Easy to use

BT136-600E 4 Quadrant TRIAC Specifications : –

The BT136 Transistor is a medium-power thyristor with a maximum voltage rating of 600V and a maximum current rating of 4A. Transistor BT136 has a low gate threshold voltage of 1.4V and a low holding current of 2.2mA. The BT136 Transistor has the following specifications:

• Maximum Voltage: 600V
• Maximum Current: 4A
• Gate Threshold Voltage: 1.4V
• Holding Current: 2.2mA
• Package: TO-220
• Operating Temperature Range: -55 to 125°C
• Storage Temperature Range: -65 to 150°C

BT136-600E 4 Quadrant TRIAC Applications : –

The Thyristor BT136 is commonly use in applications where AC power needs to be controlled, such as light dimmers, motor speed controllers, and noise coupling circuits. Thyristor BT136 is also use in some electronic power supplies. The Thyristor BT136 is a versatile switching device that can use in a wide variety of applications. Here are some of the most common applications of the Thyristor BT136:

• Light dimmers
• Motor speed controllers
• Noise coupling circuits
• AC power control

If you are looking for a versatile and powerful switching device for your next project, the Thyristor BT136 is a good option to consider.

Package : –

1 x BT136-600E 4 Quadrant TRIAC
