Name: NodeMCU32S Lua WiFi IOT Development Board
SKU: 14076
Price: 1500.00 PKR
Availability: InStock

NodeMCU32S is a Lua WiFi IOT development board based on ESP-32S module. The development board continues the classic design of NodeMCU 1.0, most of the I / O are leaded to the side , developers can connect peripherals according to their needs easily.

The core of this NodeMCU32S module is the ESP32 chip, which is scalable and adaptive. Two CPU cores can be individually controlled. The clock frequency is adjustable from 80 MHz to 240 MHz and supports RTOS.

It is a general-purpose Wi-Fi+BT+BLE MCU module.ESP-WROOM-32s The module integrates traditional Bluetooth, Bluetooth low energy and Wi-Fi.

Wi-Fi supports a wide range of communication connections, as well as direct connection to the Internet via a router; Bluetooth allows users to connect to a mobile phone or broadcast a BLE Beacon for signal detection.

The NodeMCU32S module supports data rates up to 150 Mbps and antenna output power of 20 dBm for maximum wireless communication. As a result, this module has industry-leading specifications and performs well in terms of high integration, wireless transmission distance, power consumption, and network connectivity.

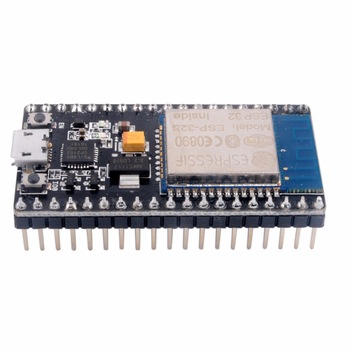

This is the NodeMCU32S development board based on ESP32, features Wi-Fi & Bluetooth connectivity, onboard CH340 and keys. What’s more, all the I/O pins of ESP32-S module are accessible via the extension headers.

Thanks to the rich open-source resources, it supports development in various ways such as Lua/AT commands/Micro Python/Arduino/IOT source code, etc. helps you to fast prototype IoT applications.

Features: –

Onboard ESP32-S module
Onboard CH340, USB to UART converter
USB port for power input, firmware programming, or UART debugging
2x19pin extension headers, breakout all the I/O pins of the module
2x keys, used as reset or user-defined
802.11b/g/n （802.11n，speed up to 150Mbps）
WIFI Frequency Range 2.4GHz ~ 2.5GHz
Clock frequency adjustment range from 80 MHz to 240 MHz, support for RTOS
Built-in 2-channel 12-bit high-precision ADC with up to 18 channels
Support UART/GPIO/ADC/DAC/SDIO/SD card/PWM/I2C/I2S interface
Support multiple sleep modes, ESP32 chip sleep current is less than 5 μA
Embedded Lwip protocol stack
Supports STA/AP/STA + AP operation mode
Supports remote firmware upgrade (FOTA)
General AT commands can be used quickly
Support secondary development, integrated Windows, Linux development environment.
