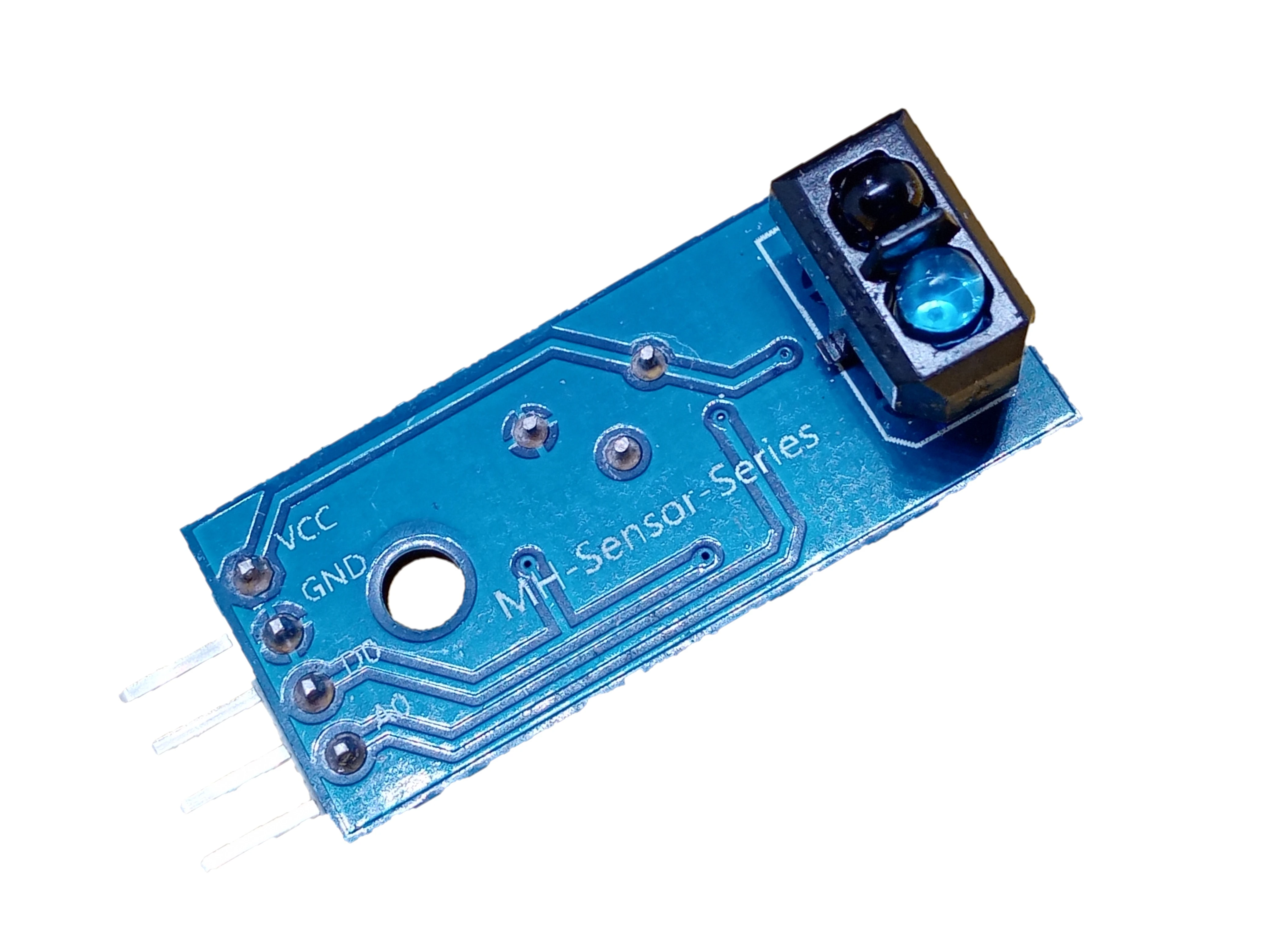

TCRT5000 IR Barrier Line Track Sensor Module

TCRT5000 IR Barrier Line Track ( Line following ) Sensor is a small, easy-to-use sensor that can be used to detect black lines on a white surface. It is commonly used in line following robots. TCRT5000 IR sensor module is a reflective sensor that is commonly used in robotic Projects and other applications that require proximity detection.

The TCRT5000 Tracking Module consists of an infrared LED and a phototransistor, both of which are housed in a black package that blocks visible light. When the LED energize, it emits infrared light that  reflect back to the phototransistor if there is a surface nearby. The amount of reflected light that receive by the phototransistor use to determine the distance to the surface.

TCRT5000 IR Line Following sensor module can power by a voltage of between 3.5V and 5V. The typical operating voltage is 5V. The module draws a current of approximately 60mA when powered at 5V.

The input voltage of the TCRT5000 IR sensor module is important to consider when choosing a power supply for your project. If you are using a microcontroller with a 3.3V logic level, you will need to use a voltage regulator to step down the voltage from 5V to 3.3V.

The TCRT5000 Infrared Reflective Sensor has two output pins: an output pin and an indicator LED. The output pin typically connected to a microcontroller, which can use the signal to determine whether a black line is present. The indicator LED used to indicate the presence of a black line.

If you are looking for a reliable and easy-to-use reflective sensor for your robotics project, the TCRT5000 IR sensor module is a great option.

Features : –

The TCRT5000 tracking module is a simple and effective way to detect black lines on a white surface. It commonly use in line following robots, but it can also use for other applications, such as obstacle avoidance and proximity detection.

The TCRT5000 IR barrier line track sensor has a number of features that make it well-suited for robotics applications. These features include:

• A wide range of detection distances: The TCRT5000 can detect objects at distances of between 1mm and 8mm.
• High sensitivity: The TCRT5000 is very sensitive to reflected light, making it ideal for detecting small objects or objects that are close to the sensor.
• Adjustable sensitivity: The sensitivity of the TCRT5000 can adjust using a potentiometer, which allows you to fine-tune the sensor for your specific application.
• Simple to use: The TCRT5000 is very easy to use, and can interface with a variety of microcontrollers.

TCRT5000 IR Barrier Line Track Sensor Module Specifications : –

The TCRT5000 is a reflective optical sensor with a transistor output. It commonly use in robotics and other applications that require proximity detection. The TCRT5000 consists of an infrared LED and a phototransistor, both of which housed in a black package that blocks visible light.

When the LED energize, it emits infrared light that reflect back to the phototransistor if there is a surface nearby. The amount of reflected light that receive by the phototransistor use to determine the distance to the surface.

Here are some of the specifications of the TCRT5000:

• Operating voltage: 3.5V to 5V
• Current draw: 60mA
• Detection range: 1mm to 8mm
• Sensitivity: Adjustable
• Output: Transistor

TCRT5000 IR Barrier Line Track Sensor Module Applications : –

The TCRT5000 IR barrier line track sensor is a versatile and reliable sensor that can use in a wide variety of robotics applications. Some common applications for the TCRT5000 include:

• Line following robots: The TCRT5000 can use to detect black lines on a white surface, which can use to guide a robot along a predetermined path.
• Obstacle avoidance robots: The TCRT5000 can use to detect obstacles in front of a robot, which can use to prevent the robot from colliding with the obstacle.
• Proximity detection: The TCRT5000 can use to detect the presence of an object within a certain range, which can use for a variety of purposes.

Package : –

1 x TCRT5000 IR Barrier Line Track Sensor Module
