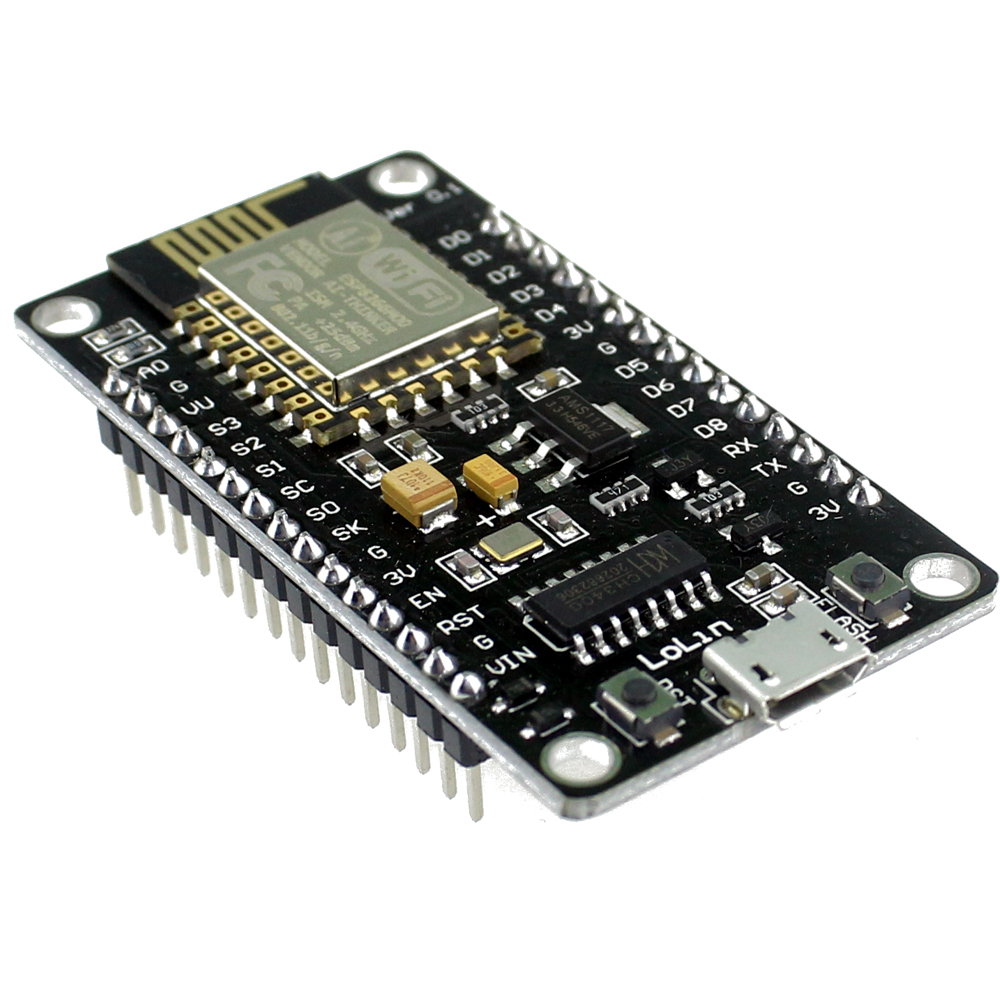

NodeMCU Lua Lolin V3 Module Esp8266 ESP-12E with CH340

NodeMCU LUA Lolin V3 ESP8266 ESP-12E CH340 WIFI board is an open-source development platform based on the ESP8266 Wi-Fi SoC. NODEMCU V3 ESP8266 ESP-12E CH340 WIFI module is a powerful and versatile board that can be used for a variety of projects, including home automation, IoT, and robotics.

NodeMCU LUA Lolin V3 ESP8266 ESP-12E CH340 WIFI board is a great choice for anyone looking for a powerful and versatile development platform for IoT projects. It is easy to use and has a wide range of features that make it well-suited for a variety of applications.

NodeMCU LUA V3 ESP8266 WIFI with ch340! The possibilities are endless! If you can imagine it, you can probably do it with a NodeMCU LUA board.

NodeMCU V3 CH340 is equipped with the powerful ESP8266 microcontroller (ESP-12F) with 802.11 b / g / n WLAN and integrated 25dBm antenna. This development board consists of flash memory chip is 25Q32 4M (32mbit) and serial chip is upgraded CH340 chip.

This WIFI development board enables you comfortable prototyping by simple programming via Lua-Script or Arduino code and breadboard-optimized construction (23 mm pin spacing).

ESP8266 CH340 can use for temperature and humidity monitors in home automation projects. Top performance: powerful on-board storage and processing capabilities that allows it to be integrated with application-specific sensors and devices that require minimum load during run time. Power your development in the fastest way bombinating with NodeMCU Firmware!

NodeMCU Lua Lolin V3 is an open source IoT platform. It uses the Lua scripting language. The eLua project is the basis of board, and built on the ESP8266 SDK 1.4. NodeMCU uses many open source projects, such as lua-cjson, and spiffs. The NodeMCU runs on the ESP8266 Wi-Fi SoC, and hardware which based on the ESP-12 module.

Features : –

NodeMCU LUA ESP8266 ESP-12E CH340 WiFi board has a number of features that make it well-suited for these applications, including.

• Built-in WiFi: The NodeMCU LUA board has built-in WiFi, which allows you to connect it to your home or office network without the need for any additional hardware.
• Lua scripting language: The NodeMCU LUA board supports the Lua scripting language, which is a powerful and easy-to-learn language that is well-suited for IoT development.
• GPIO pins: The NodeMCU LUA board has a number of GPIO pins that can be used to connect to sensors, actuators, and other devices.
• USB interface: The NodeMCU LUA board has a USB interface that allows you to program it using the Arduino IDE or the NodeMCU Lua IDE.

NodeMCU Lua Lolin V3 Module Technical Details: –

Its dimensions (L 58 mm x W 31 mm x H 13 mm) make it a perfectly designed compact board.

• Module with build in ESP-12E with PCB antenna
• WiFi connectivity: 802.11 b/g/n
• Modes: (Access Point), STA (Standalone), AP+STA
• Supports: TKIP, WEP, CRC, CCMP, WPA/WPA2, WPS
• Supply voltage: 3.3V (or 5V via micro USB port)
• CPU: RISC 80MHz (overclockable to 160MHz)
• 10 GPIO – PWM / I2C / SPI / 1-Wire
• Max current on I/O pins: 12mA
• USB-UART converter – CH340
• Build in ADC – 10-bitowy
• 30 pins in 2,54mm raster
• micro USB socket
• Size: 58 x 30mm

NodeMCU Lua Lolin V3 Module Specifications: –

Nodemcu LUA V3 ESP8266 WIFI with CH340 ads USB/UART converter chip as well as decoupled LDO power supply. Also the board adds 2 miniature push buttons. The most important feature is that it breaks out all ESP8266 pins to board headers. The board headers are breadboard compatible 2.54 mm pitch headers.

• Microcontroller: Tensilica 32-bit RISC CPU Xtensa LX106
• Operating Voltage: 3.3V
• Input Voltage: 7-12V
• Digital I/O Pins (DIO): 16
• Analog Input Pins (ADC): 1
• UARTs: 1
• SPIs: 1
• I2Cs: 1
• Flash Memory: 4 MB
• SRAM: 64 KB
• Clock Speed: 80 MHz
• USB-TTL based on CP2102 is included onboard, Enabling Plug n Play
• PCB Antenna
• Small Sized module to fit smartly inside your IoT projects

NodeMCU Lua Lolin V3 Module Applications: –

• Prototyping of IoT devices
• Low power battery operated applications
• Network projects
• Projects requiring multiple I/O interfaces with Wi-Fi and Bluetooth functionalities

Pinout Configuration

Package: –

1 x NodeMCU Lua Lolin V3 Module Esp8266 ESP-12E with CH340
