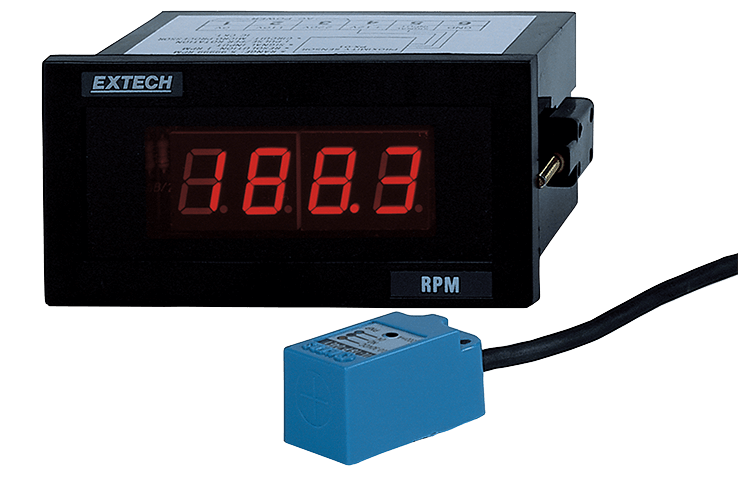

PANEL MOUNT TACHOMETER WITH SENSOR
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
Measure rpm from 5 to 99,990rpm with microprocessor quartz crystal accuracy of 0.05%
Large LED display updates 1/sec (rpm<60)
Resolution: 0.1rpm (5 to 1000rpm), 1rpm (1000 to 999rpm), 10rpm (10,000rpm to 99,990rpm)
Unique design permits rpm measurements of a one hole gear or disk eliminating the need for special gears;
Optional proximity and photo sensors
₨ 2,700.00
| Specifications | Range |
|---|---|
| rpm | 5 to 99,990rpm |
| Basic accuracy | ±0.05% |
| Resolution | 0.1rpm (5 to 1000rpm), 1rpm (1000 to 9999rpm), 10rpm (10,000rpm to 99,990rpm) |
| Power | 115V or 230V AC; 50/60Hz |
| Dimensions/Weight | Bezel 3.8×1.9×2.4″ (96x48x60mm); Panel cutout 3.6×1.8″ (92x45mm) Meter 3.6×3.5×1.7″ (92x90x42mm)/ 14oz (397g) |
| Sampling Time | 1sec>60rpm, >1sec>10 to 60rpm |
| Dimensions/ Weight | 4.9x2x1.3″ (124x50x33mm)/ 4oz (114g) |
