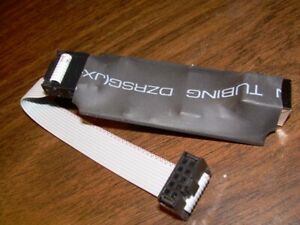

Name: USBJTAG NT USBJTAG NT PROGRAMMER SPI FLASH PROGRAMMER
SKU: 14892
Price: 24500.00 PKR
Availability: OutOfStock

Features:

USB 2.0 support.

Faster programming speed

Enhanced UI for programming, less chance get stuck at “detect”

Adjustable JTAG clock

Enhanced configuration.

Unified USBJTAG NT and USBBDM NT software

USB JTAG is Windows based JTAG tool for MIPS and ST20 CPU.

It has the speed of professional EJTAG but at a very low cost.

For now, the EJTAG can access target ram and program flash. In the future, an integration of debugger is possible.

Tested hardware:

Cable boxes: DCT2524, DCT700,DVI3000,DCT 6412 III

Cable modem:SB5100,SB5101 SB5120 SB4200, SB4100,SGB900,SB5102(SPI).RCA 315,RCA325.DPC2100

Dish receivers:DP301-010.IRD2700, DP301-013,Pansat

Router (VOIP):WRT54G,RTP300,VT2442

USB JTAG NT is the second generation of USBJTAG.

UJmodem is a software based on USB JTAG NT and provide better UI as well as continue support CLI.

USBJTAG NT provide faster programming speed and wider range of target support. The 48MHz of CPU clock and USB 2.0 specification makes the faster access of target possible. Most of the access speed is about 50% faster than USB JTAG. It supports PIC32MX (EJTAG 2.6, with FASTDATA support it is even faster, the read memory goes to 450KB/s and write memory goes to 550KB/s).

USBJTAG NT supports SPI flash making it the fastest SPI flash programmer in the world!! You can program MX25L0165A for only 8 seconds.

This is also the best tool for WRT54G router. Program the entire router under less than two minutes. Recent

test has proved that is can 100% debrick any WRT54G router.

USB JTAG NT supports PIC32MX and program 512KB/s will take a little more than 3 seconds. The future plan is to support GDB for MIPS developer. PIC32MX is the first to support and thanks the support from Microchip team. The GDB project is started and soon we will be able to debug PIC32MX with USB JTAG NT.
