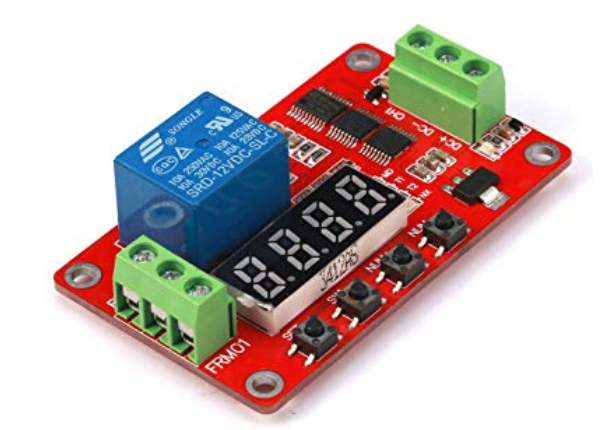

12V DC Multifunction Self-lock Relay Timer Module

1 new upgrade to version 2.0, the module functions by eight kinds
before, increased to 18 kinds, to meet the needs of more applications;
2 increase supply anti-reverse feature, power will not damage the module wrong;
3 uses top-quality high-voltage power supply modules, discrete power
supply before replacing the system more stable and reliable;
4 increased 0.1 seconds timing, timing accuracy from the previous 0.1 seconds, upgrade to 0.01 seconds;
5 increase in automatic power saving feature, users can independently set.
6.Size:66x40x1.5mm(approx)
Module Functions:
Tips: Function 1-8 on power-up self-start function 9-18 require high
pulse signal (high duration is shorter than 20ms, hereinafter the same)
trigger the start.

Function 1:
Timing Pick: After power, time delay relay pull T1, T1 between 0.1
seconds -270 hours adjustable, CH1 interface to a high level pulse
signal, repeat the above functions;

Function 2:
Timing off: when the power relay, time delay relay disconnected T1,
T1 between 0.1 seconds -270 hours adjustable, CH1 interface to a high
level pulse signal, repeat the above functions;

Function 3:
Timing pull off again: After power relay to not pull, the delay time
T1 reaches the relay is energized; pull the relay off after T2 arrival
time, delay time T1 and T2 in 0.1 seconds -270 hours between adjustable,
CH1 interface to a
High pulse signal, repeat the above functions;
Function 4:

Timing and then pull off: After power, immediately pull the relay,
the relay off delay time T1 after arrival; T2 arrive after disconnecting
time relay, -270 hour in 0.1 seconds delay time between T1 and T2
adjustable to CH1 interface a high pulse signal, repeat the above
functions;

Function 5:
Infinite loop timing mode 1: After power relay to not pull, after
the delay time T1 reaches the relay is energized; pull the relay off
after time T2 arrives, and then repeat the above condition, the delay
time T1 and T2 at 0.1 adjustable between second -270 hours, giving a
high level pulse signal CH1 interface, you can restart the above
functions;

Function 6:
Infinite loop timing mode 2: After power, immediately pull the relay
delay time T1 reaches the relay off; arrive after disconnecting time T2
relay, and then repeat the above condition, the delay time T1 and T2 in
0.1 seconds adjustable between -270 hours, giving a high level pulse
signal CH1 interface, you can restart the above functions;

Function 7:
Finite loop timing mode 1: 5 on the basis of functionality,
increasing the number of cycles function, this time between T1 and T2 in
0.1 seconds -9999 seconds adjustable cycles NX adjustable between
1-9999 times to CH1 interface a high pulse signal, the above functions
can be re-started;

Function 8:
Finite loop timing mode 2: 6, on the basis of the function,
increasing the number of cycles function, this time between T1 and T2 in
0.1 seconds -9999 seconds adjustable cycles NX adjustable between
1-9999 times to CH1 interface a high pulse signal, the above functions
can be re-started;

Function 9:
Latching relay modes: CH1 interface to relay a high level pulse signal, relay, give a high pulse signal relay disconnected.

Function 10:
Trigger relay modes: CH1 interface to a high signal relay, relay, high disappear, relay disconnected.

Function 11:
Pull the trigger timing: After power relay does not act, a
high-level interface to CH1 pulse signal, the delay time relay pull T1,
T1 between 0.1 seconds -270 hours adjustable, repeating a high level
interface to CH1 pulse signal, repeat the above function;

Function 12:
Trigger timing off: After power relay does not act, a high-level
interface to CH1 pulse signal relay, the relay off delay time T1, T1
between 0.1 seconds -270 hours adjustable, repeat to CH1 interface a
high pulse signal, repeat the above functions;

Function 13:
Pull the trigger timing then disconnect: After power relay does not
act, CH1 interface to a high level pulse signal, the delay time T1
reaches the relay is energized; pull the relay off after T2 arrival
time, delay time T1 and T2 between 0.1 seconds -270 hours adjustable,
repeat CH1 interface to a high level pulse signal, repeat the above
functions;

Function 14:
Disconnect and then pull the trigger timing: After power relay does
not act, a high-level interface to CH1 pulse signal, immediately pull
the relay, the relay off delay time T1 after arrival; T2 arrive after
disconnecting time relay, delay time between T1 and T2 in 0.1 seconds
-270 hours adjustable, repeat CH1 interface to a high level pulse
signal, repeat the above functions;

Function 15:
Infinite loop timing mode 1: After power relay does not operate to a
high level pulse signal CH1 interface, the delay time T1 reaches the
relay is energized; pull off the relay arrival time T2, and then repeat
the above condition, the extension when the time between T1 and T2 in
0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level
pulse signal, the above functions can be re-started;

Function 16:
Infinite loop timing mode 2: After power relay does not act, a
high-level interface to CH1 pulse signal, immediately pull the relay,
the relay off delay time T1 after arrival; break time T2 after reaching
relay, then repeat the above condition, the delay time between T1 and T2
in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high
level pulse signal, the above functions can be re-started;

Function 17:
Finite loop timing mode 1: 15 on the basis of functionality,
increasing the number of cycles function, this time between T1 and T2 in
0.1 seconds -9999 seconds adjustable cycles NX adjustable between
1-9999 times, repeating to CH1 interface a high pulse signal, the above
functions can be re-started;

Function 18:
Finite loop timing mode 2: 16 on the basis of functionality,
increasing the number of cycles function, this time between T1 and T2 in
0.1 seconds -9999 seconds adjustable cycles NX adjustable between
1-9999 times, repeating to CH1 interface a high pulse signal, the above
functions can be re-started;
Connections:
Module control side: there are 3-wire interface, all interfaces are terminal

1, DC +:12V positive
2, DC-: power in negative
3, CH1: Input Detection Interface
Relay outputs: a 3-wire interface, all interfaces are terminal
1, NO: normal open (before relay closes, this pin is not connected. after relay closes, the pin short-connects with COM)
2, COM: Relay Common Interface
