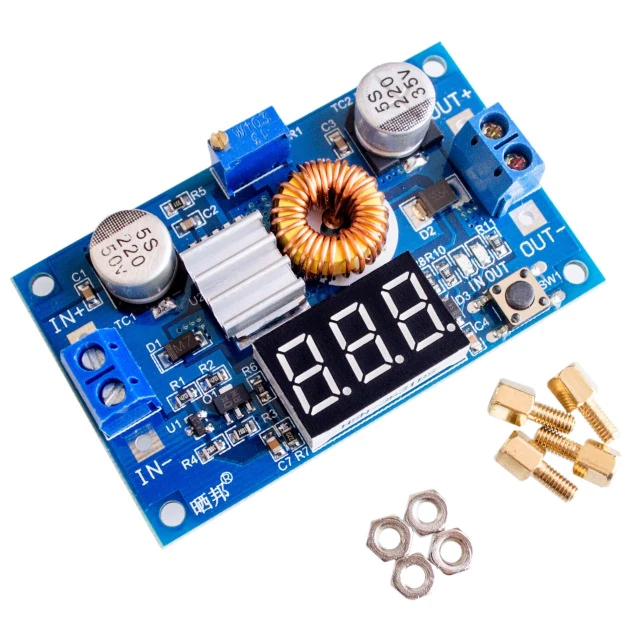

5A 75W DC-DC Adjustable Step-down Module
expert.peshawar
Features:
1. LED power indicator.
2. Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turned off by another button. Mentioned states are able to be memorized, is not lost even if the power is disconnected. (On-board marked “IN” LED is turned on, the nixie tube display input voltage value, “OUT” LED bright display is the output voltage value).
3. Special launch, the voltmeter calibration function, will never exist voltmeter inaccurate!
₨ 750.00
Performance Parameters:
- Input voltage range:4-38VDC(Note:input voltage not exceeding 38V)
- Output voltage range:1.25-36VDC adjustable
- Output current: 0-5A
- Output power: 75W
- voltmeter range: 4 to 40V, error ±0.1V
- Operating frequency: 180KHz
- High efficiency up to 96 pecent
- Built in thermal shutdown function
- Built in current limit function
- Built in output short protection function
- Input reverse polarity protection: None (if required, high current diode in series with the input).
- L x W x H =6.6×3.9×1.8CM
- Weight: 28g
