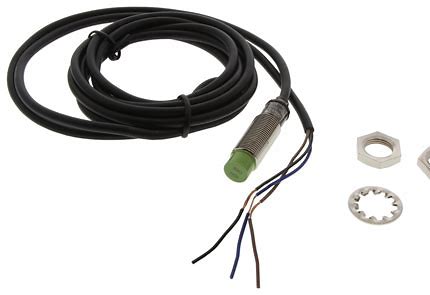

Autonics Cylindrical Inductive Proximity Sensor PR12-4DN

This Autonics Cylindrical Inductive Proximity Sensor PR12-4DN Series enhance superior noise resistance characteristics with dedicated IC which Autonics self developed.

The series can be widely used in any applications where Proximity Sensors are required because of a diverse range of line-ups in terms of size and sensing distance. This inductive proximity sensor generates an electromagnetic field to sense metal objects.

It features built-in sensitivity volume and provides no-touch object detection. Inductive sensors use a magnetic field to detect objects. Capacitive sensors use an electric field. In order to be sensed by an inductive sensor, an object must be conductive.

This Autonics Cylindrical Inductive Proximity Sensor PR12-4DN limits suitable targets to metal objects (for the most part). In order to be sensed by a capacitive sensor, the target doesn’t need to be conducted. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.

Autonics Cylindrical Inductive Proximity Sensor PR12-4DN comes in a round cylindrical shape, with a sensing distance of 4mm., with sensing side diameter and housing size of M12, non-shielded (non-flush) installation, DC 3-wire type (12~24VDC). PR12-4DN from Autonics comes with the following features:

Features: –

• Improve the noise resistance by adopting dedicated

• The built-in protection circuit of reverse power polarity (DC 3-wire type)

• The built-in surge protection circuit

• Built-in overcurrent protection circuit (DC type)

• Good performance of anti-interference.

• Many output forms

• High on-o frequency.

• IP67 protection structure (IEC standard).

• Replaceable for micro switches and limit switches.

PR12-4DN Specifications: –

• Type: Cylindrical round (PR Series) Message us GetButton
• Sensing Distance: 4mm
• Header dimension / square : 12mm
• Shield: Non-Shield
• Connection Type: 2m cable loose end
• Voltage: 12 – 24 VDC 7. Wire Type: DC 3-wire 8. Output Type : NPN 2- 100mA 9. Frequency: 500Hz

Datasheet: –

instrumart.com/…/Autonics_PR_Series_Proximity_Sensors_datasheet.pdf

Package: –

1 x Autonics Cylindrical Inductive Proximity Sensor PR12-4DN
