DC MOTOR SPEED AND DIRECTION CONTROLLER
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD

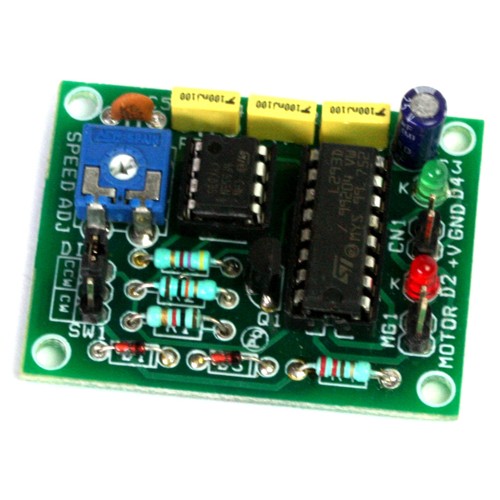

DC Motor Speed and direction controller project based on L293D H-Bridge and 555 Timer IC. 555 Generate PWM and L293D works as output driver. The 293D provides bidirectional drive current up to 600mA a voltage from 5V to 12V. L293D includes the output clamping diodes for protections.
₨ 1,200.00
Specifications:
- Supply 5 to 12 V
- Inhibit facility/enable
- PWM Frequency 5KHz Maximum
- High Noise immunity
- Over temperature protection
- Capable of delivering output current up to 600 mA per channel
- The control/interface lines are accessible with Berg connector
- Header connector for motor and supply connection
- PR1 : Preset Speed Adjust
- SW1 : 3Pin Jumper and Closer for Direction change
- CN1 : DC Motor Supply input 5V to 12V DC
- Dimensions 48.26mm x 36.83mm
