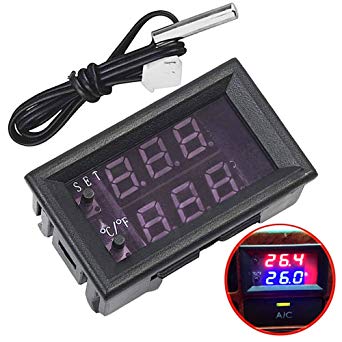

Digital Thermostat Adjustable Temperature Control Module with Display

Product Electrical Characteristics:

• Temperature measurement range: -50 °C ~ 110 °C Resolution : -9.9-99.9 when 0.1 °C other temperature range 1 °C
• Measurement accuracy: ± 0.1 ° C
• Control accuracy: 0.1 ° C
• Hysteresis accuracy: 0.1 ° C
• Refresh rate: 0.5S
• High temperature protection: 0-110 ° C
• Input voltage: DC12V
• Output: One way 20 A relay
• Measurement input: NTC (10K0.5%) waterproof sensor
• Environmental requirements: -10 ℃ –60 ℃ humidity of 20% – 85%
• Size: 48mm (length) * width 29mm * depth: 32mm
• Opening size: 46*26.5mm
• Power consumption of the whole machine: quiescent current ≤35MA Pull-in current: ≤65MA
• Power supply : 12V200MA usage
