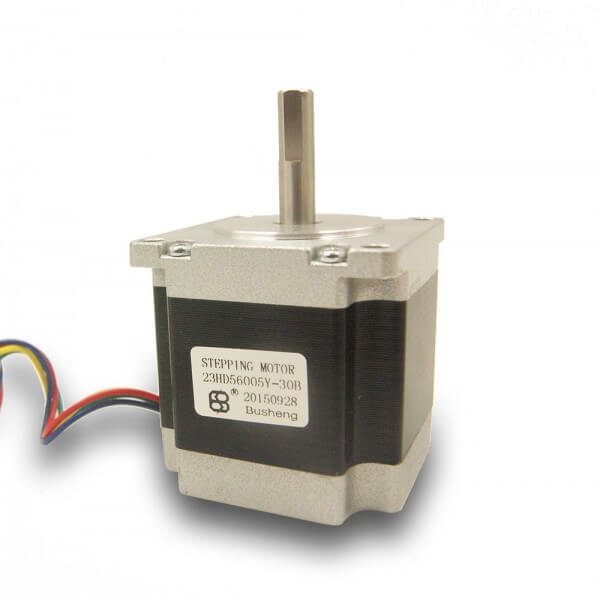

STEPPER MOTOR, TWO-PHASE HYBRID FOUR-LINE, 1.8 DEGREES, 3A TORQUE 12Kg.cm
Sold by
@ expert peshawar Ask ownerexpert.peshawar
A stepper motor or step motor or stepping motor is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor’s position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.
₨ 1,960.00
Specifications:
- Rated current (one-phase): 3A DC.
- Stepping angle: 1.8°.
- Environment Temperature: -20~50℃.
- RH: 90%MAX
- Mounting Position: Axis horizontal or vertical installation
- Direct-current winding resistance (25℃): 1.6Ω±10%
- Wnding inductance: 2.2mH±20%
- Cogging torque:45mN.m REF.
- Holding torque: ≥1.2N.m（I=3A）
- Max. no-load starting frequency: ≥1100pps
- Max. no-load running Frequency: ≥8000pps
- Temperature rise: Step Angle Accuracy: 1.8°± 5%
- Rotary inertia: 280g.cm2
- Motor Weight: 0.7kg
- Insulation resistance: Cold insulation resistance should be more than 100mΩ (between the Motor stator core and Terminal)
- Dielectric strength: The space between the Motor stator core and Terminal should be able to withstand AC600V/1s without breaking down.
- Leakage current is less than 1mA.
