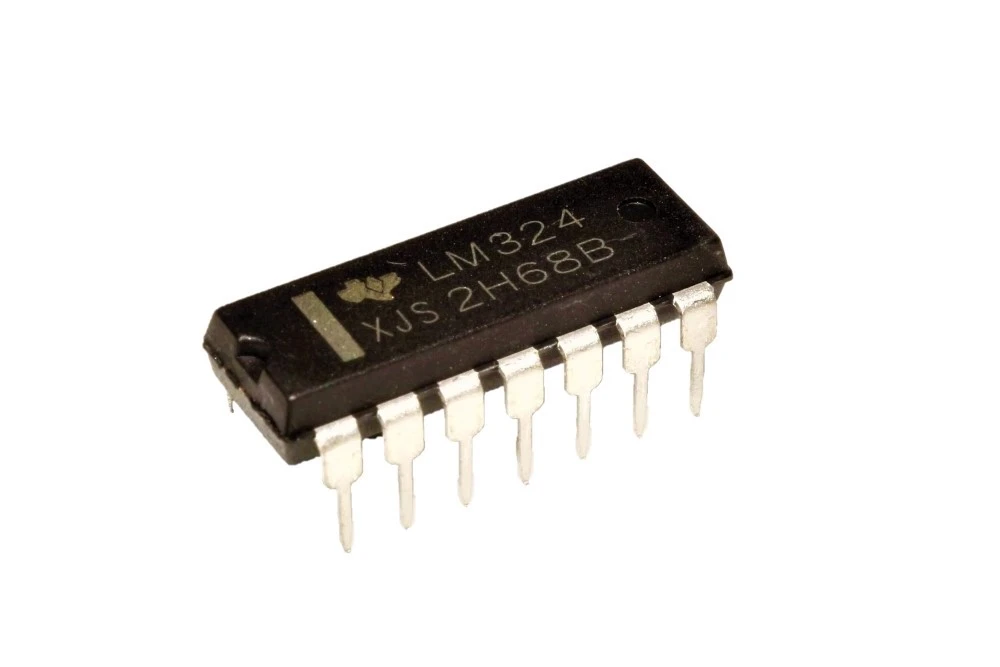

IC LM324N Tone Control Quad OP-AMP PDIP-14

@ MODERN HALLROAD

IC LM324N Quad OP-AMP IC is low power dual amplifier can either operate on a split power supply or single supply and is a Quad op-amp IC.

 40.00

In stock

IC LM324N Quad OP-AMP IC is low power dual amplifier can either operate on a split power supply or single supply and is a Quad op-amp IC.

The LM324 OP AMP IC can work like a normal comparator, and it comprises four independent op-amps internally.

IC LM324N has designed with low-power, bandwidth and high stability for operating with single power supply over extensive voltage ranges.

The operating temperature ranges from 0˚C to 70˚C at ambient whereas the maximum junction temperature can be upto 150˚C. Generally, LM324 op amp can perform mathematical operations.

The range of operating voltages of this LM324N IC includes 3.0 V for low and 32 V for high. The range of common mode input mainly comprises the negative voltage supply, thus removing the requirement of outside biasing components in several applications.

Op-amps are high gain electronic voltage amplifier with differential input and, usually, a single-ended output.

The range of output voltage also comprises the negative voltage supply. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage

IC LM324N consists of 14-pins with four independent op-amps in one package. These electronic voltage amplifiers are available in high gain with differential input as well as a single output.

The voltage difference among the input terminals of the IC is very less than the output voltage. These comparators operate with a single power supply and need of dual supply is removed.

These ICs can be utilized as comparators, oscillators, amplifiers, rectifiers, etc. By using this IC several applications can be implemented very easily.



Features:-

  • Internally frequency compensated for unity gain
  • Large DC voltage gain 100 dB
  • Wide bandwidth 1 MHz
  • Wide power supply range: Single supply 3V to 32V
  • Essentially independent of supply voltage
  • Differential input voltage range equal to the power supply voltage
  • Large output voltage swing 0V to V+ − 1.5V
  • Low power operation of 0.7mA
  • Operates from a single positive power supply of 3 to 32V
  • Can also operate from a split supply of ± 1.5 to ±16V like typical Op-Amp
  • 1MHz unity gain bandwidth
  • Open loop gain of 100x

IC LM324N Specifications: –

  • Short Circuited Protected Outputs
  • True Differential Input Stage
  • Single Supply Operation: 3.0 V to 32 V
  • Low Input Bias Currents: 100 nA Maximum (LM324A)
  • Four Amplifiers Per Package
  • Internally Compensated
  • Common Mode Range Extends to Negative Supply
  • Industry Standard Pinouts
  • ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation
  • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
  • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

IC LM324N Applications: –

  • Transducer Amplifiers
  • Filter circuits, Voltage followers
  • Integrator, Differentiator, Summer, adder, Voltage follower, etc.,
  • DC gain blocks
  • Comparators (Loop control & regulation)
IC LM324N Datasheet: –

onsemi.com/pdf/datasheet/lm324-d.pdf

Package: –

1 x LM324 Quad OP-AMP IC Low Power Operational Amplifier
