SPI interface Micro SD TF Card Adapter Module

Sold by
sherjaan
@ sherjaan

SPI interface Micro SD TF Card Adapter Module is a small circuit board that allows you to read and write data from a Micro SD card using the Serial Peripheral Interface (SPI) protocol. It has a standard SPI interface, which makes it compatible with a wide range of devices, such as Arduino, Raspberry Pi, and BeagleBone Black.

 120.00

In stock

SPI interface Micro SD TF Card Adapter Module is a small circuit board that allows you to read and write data from a Micro SD card using the Serial Peripheral Interface (SPI) protocol. It has a standard SPI interface, which makes it compatible with a wide range of devices, such as Arduino, Raspberry Pi, and BeagleBone Black.

To use an SPI interface Micro SD TF Card Adapter Module, you first need to connect it to your device. The module has four pins: VCC, GND, MISO, and MOSI. VCC and GND are the power and ground pins, respectively. MISO and MOSI are the data pins. Once the module is connected, you can insert a Micro SD card into the slot. The module will automatically detect the card and begin reading or writing data.

SPI interface Micro SD TF Card Adapter Modules are a great way to add storage capacity to your devices. They are also a great way to transfer data between devices. If you are looking for a way to do either of these things, then an SPI interface Micro SD TF Card Adapter Module is a great option.

microSD card adapter is a small device that allows you to connect a microSD card to a device that only accepts a full-sized SD card. This can be useful for transferring data between devices, or for using a microSD card in a device that does not natively support them.

Micro SD TF Card Reader Module is specially useful for projects that require data logging. Users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write. The Arduino can create a file in an SD card to write and save data using the SD library. There are different models from different suppliers, but they all work in a similar way, using the SPI communication protocol.

Features: –

Micro SD TF Card Reader Module is a Micro SD card reader module and the SPI interface via the file system driver, microcontroller system to complete the Micro SD card read and write files.

SPI interface Micro SD TF Card Adapter Module also includes a 74LVC125A logic level shifter chip, allowing for safe and easy communication with your favorite 3.3V or 5V microcontroller without damaging the SD card.

Here are some of the benefits of using a MicroSD card adapter:

  • Increased storage capacity: microSD cards offer more storage capacity than many devices can natively support. By using a microSD card adapter, you can add more storage to your device without having to upgrade to a new model.
  • Easy data transfer: microSD card adapters make it easy to transfer data between devices. This can be useful for backing up data, transferring photos and videos, or moving files between computers.
  • Compatibility: microSD card adapters are compatible with a wide range of devices. This makes them a great option for users who want to use their microSD cards in a variety of devices.
  • Versatility: SPI SD card readers can be used with a wide range of devices, making them a versatile and popular option for storing data.
  • Cost-effectiveness: SPI SD card readers are typically very affordable, making them a cost-effective way to add storage capacity to your devices.
  • Ease of use: SPI SD card readers are typically very easy to use, making them a good option for beginners.

SPI interface Micro SD TF Card Adapter Module Specifications: –

SPI SD card reader is a small device that allows you to read and write data from an SD card using the Serial Peripheral Interface (SPI) protocol. This protocol is commonly used to communicate with a variety of devices, including microcontrollers, embedded systems, and computers.

SPI interface Micro SD TF Card Adapter Modules are a great way to add storage capacity to your devices. They are also a great way to transfer data between devices. If you are looking for a way to do either of these things, then an SPI interface Micro SD TF Card Adapter Module is a great option

Here are some Key Specifications of SPI interface Micro SD TF Card Adapter Module

  • Input Voltage: 3.3V/5V
  • With all SD SPI Pins out :MOSI, SCK, MISO and CS ,for further connection
  • Through programming, you can read and write to the SD card using your arduino
  • Make your SD application more easier and simple
  • Communicate with Arduino using SPI interface
  • Push-pop socket with card slightly over the edge of the PCB so its easy to insert and remove
  • 4 mounting holes with 2.2mm diameter
  • Only use 4 I/O pins on the Arduino
  • Size: 42mm x 25mm x 5mm

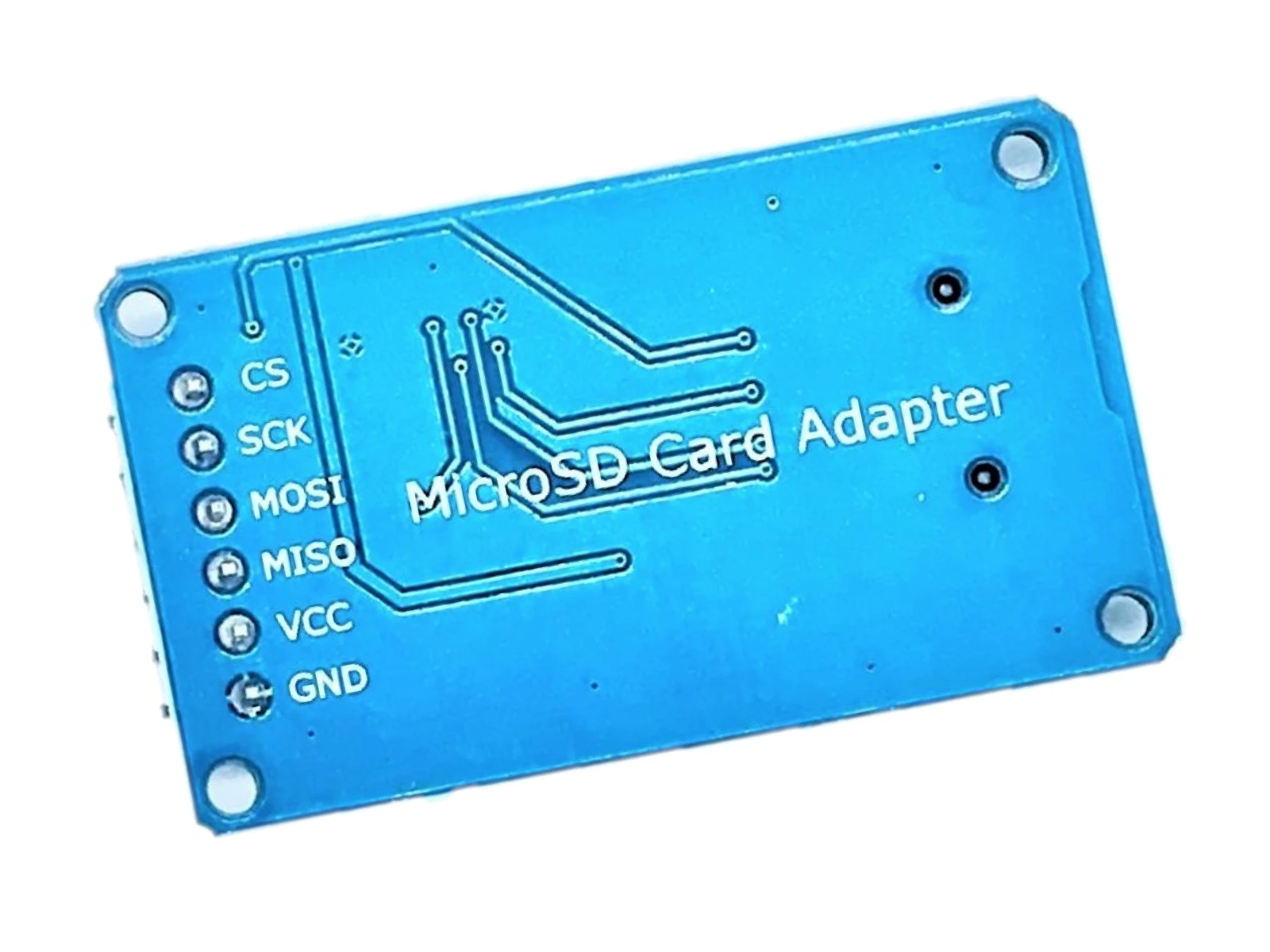

SPI interface Micro SD TF Card Adapter Module Pin Description: –

The SD Card Reader Module contains 6 pins for power and communicating with the controller. The table below describes the pin type and role of each pin on the module.

Pin Type Pin Description
GND Ground
VCC Voltage Input
MISO Master In Slave Out(SPI)
MOSI Master Out Slave In(SPI)
SCK Serial Clock(SPI)
CS Chip Select(SPI)
SPI interface Micro SD TF Card Adapter Module Applications: –

Micro SD cards offer more storage capacity than many devices can natively support. By using a Micro SD TF Card Adapter Module, you can add more storage to your device without having to upgrade to a new model. Micro SD TF Card Adapter Modules make it easy to transfer data between devices. This can be useful for backing up data, transferring photos and videos, or moving files between computers.

Micro SD TF Card Adapter Modules are compatible with a wide range of devices. This makes them a great option for users who want to use their Micro SD cards in a variety of devices.

Here are some Applications of SPI interface Micro SD TF Card Adapter Module

  • Data loggers
  • Audio, Video storage, and Visualization
  • Expandable memory

If you are looking for a way to increase the storage capacity of your device, transfer data between devices, or make your Micro SD card compatible with a wider range of devices, then a Micro SD TF Card Adapter Module is a great option.

Package: –

1 x SPI interface Micro SD TF Card Adapter Module
