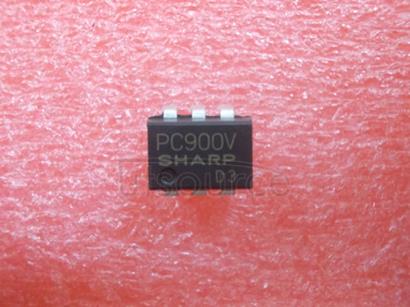

PC900V, OPTOISOLATOR OPEN COLLECTOR, 5kV
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
In electronics, an opto-isolator, also called an optocoupler, photocoupler, or optical isolator, is a component that transfers electrical signals between two isolated circuits by using light.
₨ 50.00
Specifications:
- Number of Channels : 1
- Inputs – Side 1/Side 2 : 1/0
- Voltage – Isolation : 5000Vrms
- Input Type : DC
- Output Type : Open Collector
- Current – Output / Channel : 50mA
- Propagation Delay tpLH / tpHL (Max) : 6µs, 3µs
- Rise / Fall Time (Typ) : 100ns, 50ns
- Voltage – Forward (Vf) (Typ) : 1.1V
- Current – DC Forward (If) (Max) : 50mA
- Voltage – Supply : 3 V ~ 15 V
- Operating Temperature : -25°C ~ 85°C
- Mounting Type : Through Hole
- Package / Case : 6-DIP (0.300″, 7.62mm)
- Supplier Device Package : 6-DIP
Vendor Information
- Store Name: MODERN HALLROAD
- Vendor: MODERN HALLROAD
- Address:
- 5.00 rating from 1 review
