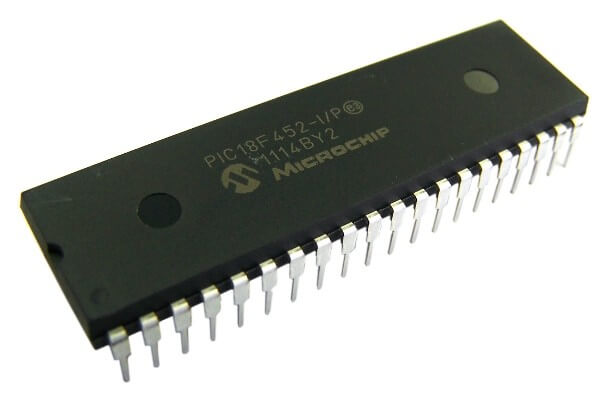

PIC18F452, MICROCHIP MICROCONTROLLER IC, 32KB FLASH, 8-BIT
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
The PIC18F452-I/P is a high-performance Enhanced Flash Microcontroller with 8 channels of 10-bit Analogue-to-digital (A/D) converter. The PIC18F452 features a C compiler friendly development environment, 256 bytes of EEPROM, self-programming, an ICD, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and Addressable Universal Asynchronous Receiver Transmitter (AUSART). All of these features make it ideal for manufacturing equipment, data acquisition, power conditioning and environmental monitoring.
₨ 640.00
Features:
- High-Performance RISC CPU
- Linear program memory addressing to 32 Kbytes
- DC – 40 MHz osc./clock input
- 16-bit wide instructions, 8-bit wide data path
- Priority levels for interrupts
- 8 x 8 Single Cycle Hardware Multiplier
- 16 kBytes Flash Program Memory
- 1536 Byte RAM Data Memory
- 256 Byte RAM Data Memory
- Two 16-bit timer/counter (TMR1, TMR3)
- One 8-bit/16-bit timer/counter with prescaler
- One 8-bit timer/counter with 8-bit period register
- Capture 16-bit, max. resolution 6.25ns(TCY/16)
- Compare 16-bit, max. resolution 100ns
- 3-wire SPI (supports all 4 SPI modes)
- I²C Master and Slave mode
- Addressable USART Module supports RS-485 and RS-232
- Parallel Slave Port (PSP) module
- Eight Channel 10-bit Analog-to-Digital Converter
- 34 I/O pins with individual direction control
- 40-pin DIP
