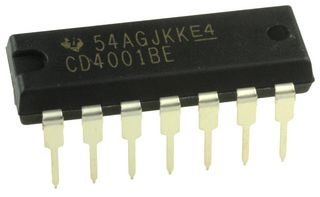

CD4001 Quad 2 Input NOR Gate IC

CD4001 is a quad 2 input NOR gate IC that operates in the CMOS logic family. It has four independent NOR gates, each with two inputs and one output. The output of each gate is high when both inputs are low, and low when either input is high.

CD4001 is a quad 2-input NOR gate IC. That is, it has four NOR gates inside a single package and each gate has two input lines and one output line.

A NOR gate is a digital logic gate that implements logical NOR – it behaves according to the truth table to the right. A HIGH output results if both the inputs to the gate are LOW; if one or both input is HIGH, a LOW output results.

The CD4001 is a member of the CMOS logic family, which is a complementary metal–oxide–semiconductor logic family. This means that it uses both N-channel and P-channel MOSFETs to perform its logic operations. CMOS logic is characterized by high speed, low power consumption, and high noise immunity.

CD4001 has a supply voltage range of 5V to 20V, which is much higher than any contemporary logic family. It has buffered output which improves transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.

It has equal source and sink current capabilities and conforms to the standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain.

Features : –

CD4001 quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS

Here are some of the features of the CD4001 IC:

• Quad 2-input NOR gate: The CD4001 has four independent 2-input NOR gates.
• CMOS logic: The CD4001 is a CMOS logic IC, which means that it is very low power and consumes very little current.
• Wide operating voltage range: The CD4001 can operate on a wide range of voltages, from 3V to 18V.
• High speed: The CD4001 is a high-speed IC, with a propagation delay of only 60 ns.
• Wide temperature range: The CD4001 can operate in a wide temperature range, from -40°C to 85°C.

CD4001 Quad 2 Input NOR Gate IC Specifications : –

CD4001 has a supply voltage range of 5V to 20V, which is much higher than any contemporary logic family. It has buffered output which improves transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.

Here are the specifications of the CD4001 IC:

• Package: 14-pin DIP (dual-in-line package)
• Operating voltage: 3V to 18V
• Maximum current draw: 200mA
• Propagation delay: 60 ns
• Maximum fan-out: 10
• Temperature range: -40°C to 85°C
• Operating humidity range: 40% to 85%

CD4001 Quad 2 Input NOR Gate IC Applications : –

CD4001 is a powerful IC that can use to create a wide variety of digital circuits. It is a popular choice for hobbyists and engineers alike. CD4001 is a versatile IC that can use in a variety of applications. Some common applications include:

• Logic gates
• Counters
• Shift registers
• Decoders
• Multiplexers
• Demultiplexers
• Memory devices
• Programmable logic devices

Package : –

1 x CD4001 Quad 2 Input NOR Gate IC
