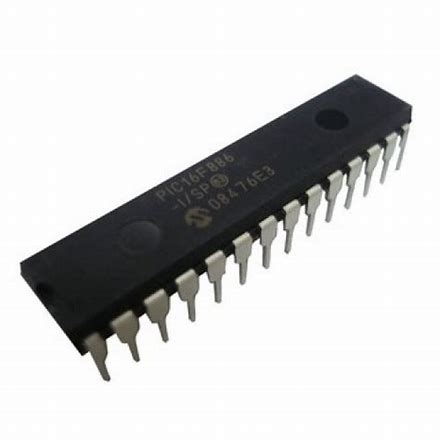

PIC16F886 8 Bit Microcontroller in Pakistan

@ MODERN HALLROAD

PIC16F886 is one of the 8-bit microcontroller made by nano-watt technology. It is preferred by most of the developers for experimenting due to its multiple functionalities at a cheap rate.

 1,100.00

In stock

Category:

PIC16F886 is one of the 8-bit microcontroller made by nano-watt technology. It is preferred by most of the developers for experimenting due to its multiple functionalities at a cheap rate. It comes in 28 pins an internal oscillator that can be variate at a specific range through programming.

The 16-byte flash memory of this controller is good enough for most of the applications. PIC16F886 comes with auto Power saving modes and watchdog timer which makes the controller more reliable. It also comes in multiple packages that solve multiple circuitry requirements. It also comes with two programming pins on the microcontroller which makes it easy to program.

The PIC16F886-I/SP is a 8-bit flash-based CMOS Microcontroller. It features 256bytes of EEPROM data memory, self programming, an ICD, 2 comparators, 11 channels of 10-bit Analogue-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions.

A synchronous serial port that can be configured as either 3-wire serial peripheral interface (SPI™) or the 2-wire inter-integrated circuit (I²C™) bus and an enhanced universal asynchronous receiver transmitter (EUSART). The Analogue-to-Digital converter (ADC) allows conversion of an analogue input signal to a 10-bit binary representation of that signal.

PIC16F886 8 Bit Microcontroller uses analogue inputs, which are multiplexed into a single sample and hold circuit. The output of the sample and hold is connected to the input of the converter. The converter generates a 10-bit binary result via successive approximation and stores the conversion result into the ADC result registers (ADRESL and ADRESH).

PIC16F886 is microcontroller from ‘PIC16F’ family and is made by MICROCHIP TECHNOLOGY. It is an 8-Bit CMOS Microcontroller with nano-Watt Technology. This microcontroller is popular among hobbyists and engineers due its features and cost.

Features: –

  • 20 MHz Max. CPU Speed
  • 35 Instructions
  • 8 Level Hardware Stack
  • 8 MHz Internal Oscillator – Selectable Output Range from 8 MHz to 31 kHz
  • 24 I/O Pins – PIC16F882/883/886
  • 35 I/O Pins – PIC16F884/887
  • Power-On Reset (POR)
  • Brown-Out Reset (BOR)
  • Power-Up Timer (PWRT)
  • Oscillator Start-Up Timer (OST)
  • Watchdog Timer (WDT)
  • In-Circuit Serial Programming (ICSP)
  • In-Circuit Debug (ICD)

PIC16F886 8 Bit Microcontroller Specifications: –

Name Features
CPU Architecture 8-bit RISC Pipelined
CPU Frequency 20MHz
Operating Voltage Range (2.0V-5.5V)
GPIO PORTS 26 I/O Pins
Interrupts One external interrupt RB0
Timers 2 8-bit and one 16-bit timer
PWM 1 CCP and 1 ECCP Module
UART One UART channel
I2C One I2C channel
SPI One SPI channel
LAN No Available
CAN No Available
ADC 11 Channel
DAC No Available
Enhanced USART Module 1 Channel
SRAM 368 bytes
FLASH ( Program Memory) 8192 bytes
EEPROM 256 bytes
Comparator 2



PIC16F886 8 Bit Microcontroller Applications: –

  • Hobbyist projects
  • Display units
  • Development board for learners
  • Analog signal measuring and manipulations
  • Embedded systems like coffee machine, vending machine
  • Motor control systems
PIC16F886 8 Bit Microcontroller Datasheet: –

ww1.microchip.com/…n/devicedoc/41291d.pdf

Package: –

1 x PIC16F886 8 Bit Microcontroller
