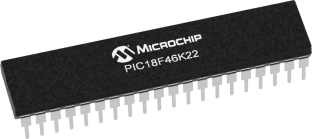

PIC18F46K22, MICROCHIP MICROCONTROLLER IC, 64KB FLASH, 8-BIT
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
The PIC18F46K22-I/P offers high computational performance with the addition of high endurance and enhanced flash program memory. In addition to these features, the PIC18F46K22-I/P introduces design enhancements that make these microcontrollers a logical choice for many high performance, power sensitive applications.
₨ 800.00
Features:
- Core Size8-Bit
- Speed64MHz
- ConnectivityI²C, SPI, UART/USART
- PeripheralsBrown-out Detect/Reset, HLVD, POR, PWM, WDT
- Number of I/O35
- Program Memory Size64KB (32K x 16)
- Program Memory TypeFLASH
- EEPROM Size1K x 8
- RAM Size3.8K x 8
- Voltage – Supply (Vcc/Vdd)2.3 V ~ 5.5 V
- Data ConvertersA/D 30x10b
- Oscillator TypeInternal
- Operating Temperature-40°C ~ 85°C (TA)
- Package / Case40-DIP (0.600″, 15.24mm)
- Supplier Device Package 40-PDIP
Vendor Information
- Store Name: MODERN HALLROAD
- Vendor: MODERN HALLROAD
- Address:
- 5.00 rating from 1 review
