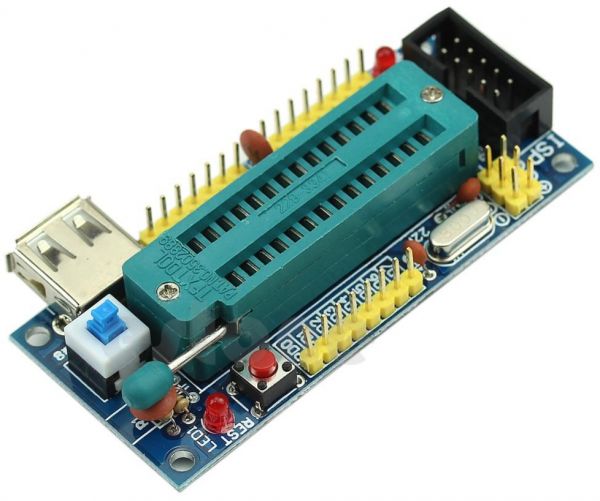

ATMEGA8 ATMEGA48 ATMEGA88 Development Board AVR (NO Chip) DIY Kit

Description:

1. Supply Voltage: The USB socket or pin female power supply voltage and the operating voltage of the same chip.

2. Crystal: 8M.

3. PCB Board Size: 7.4cm * 3.4cm.

4. The Thickness Of The Module:1.6mm.

5. Aperture: 3 mm.

6. The module USES standard double panel.

Listing:

PCB board *1

28P locking seat*1

USB female*1

DC3-10 horns seat*1

8 * 8 self-locking switch*1

40P pin*1

8M crystal*1

22P ceramic capacitors*2

104 ceramic capacitors*2

3MM LED red*2

6 * 6 buttons*1

4.7K resistor*2

10K resistor*1
