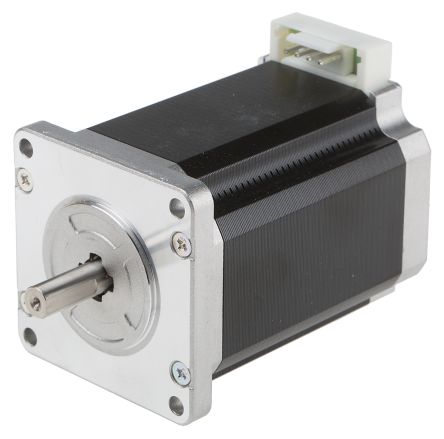

STEPPER MOTOR WITH DRIVER, 24V/4A
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
A stepper motor or step motor or stepping motor is a brushless DC electric motor that divides a full rotation into a number of equal steps.
₨ 12,000.00
Specifications:
- Step Angle : 1.8°
- Holding Torque : 2.7Nm
- Number Of Wires : 4
- Voltage Rating : 24 V dc
- Frame Size : 60 x 60mm
- Stepper Motor Type : Single Shaft
- Shaft Diameter : 8mm
- Current Rating : 4 A
- Winding Arrangement : Bipolar
- Shaft Length : 19.1mm
- Depth : 87.3mm
- Resistance Per Phase : 2.4Ω
