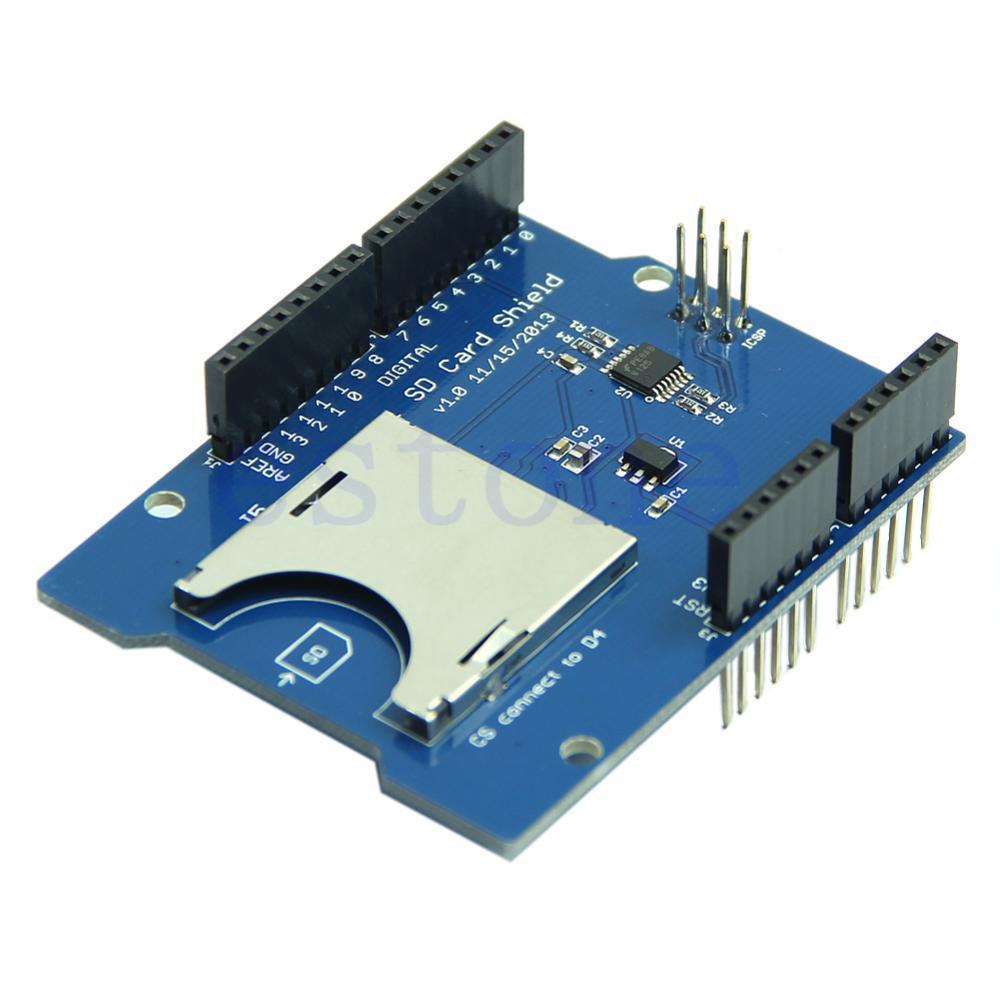

TF SD Card Shield Micro SD Card Adapter

The TF SD Card Shield Micro SD Card Adapter is a Micro SD card reader module, and the SPI interface via the file system driver, micro-controller system to complete the Micro SD card read and write files. Users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write.

TF SD Card Shield Micro SD Card Adapter is a break out board for standard SD and TF card. It is compatible with 5V and 3.3V Arduino mainboards, Arduino-compatible boards and Arduino mainboards that SPI is on ICSP instead on pin D11~13 such as Leonardo.

Storing data is one of the most important parts of every project. There are several ways to store data according to the data type and size. SD and micro SD cards are one of the most practical ones among the storage devices, which are used in devices such as mobile phones, minicomputers and etc.

This is the new-released SD card V4.0 shield. It provides a storage space for your Arduino. Users can read/write SD card via Arduino’s built-in SD library. It supports SD, SDHC and Micro SD cards. It will only occupy the SPI port of your Arduino. Comparing to previous versions, it combines the standard SD slot and the Micro SD slot into a standard one, the included adaptor enables using of Micro SD cards . You can stack on other shields that work with the unused pins. Additionally, the preformed I2C and UART port facilitate your connection with Grove modules.

Features: –

• Stand SD Card, SDHC card and TF card compatible
• UART Grove & I2C connection compatible
• Fully supported SD Library
• Minimal number of SPI port
• Truly stackable

TF SD Card Shield Specifications: –

• PCB size:56.15mm X56.23mm X 1.6mm

• Operating voltage:3.3V/5V DC

• Indicator: PWR

• Communication interface: UART, IIC, SPI

• Electronic brick interface: Grove 4pin

TF SD Card Shield Pin Descriptions: –

VCC                      3v3
GND                     GND
D13                      SD_CLK
D12                      SD_OUT
D11                      SD_IN
D10                      SD_CS

Package: –

1 x TF SD Card Shield
