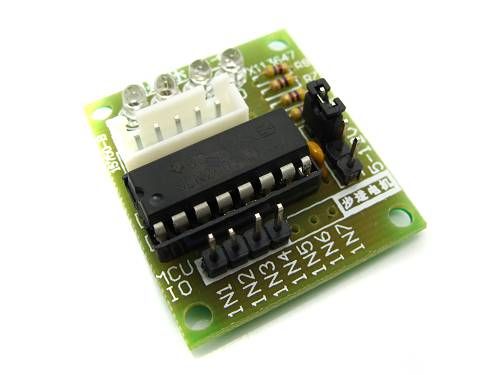

ULN2003 Driver Board for 5v Stepper Motor

The ULN2003 driver board is a small, inexpensive board that can be used to control stepper motors. It has 7 driver channels, each of which can provide up to 500mA of current. This makes it suitable for a variety of stepper motors, including the popular 28BYJ-48 stepper motor.

The ULN2003 driver is easy to use. Simply connect the motor to the board, and then use the digital outputs on your microcontroller to control the motor. The ULN2003 driver board will take care of the rest.

The ULN2003 driver board is a great way to add stepper motor control to your projects. It is small, affordable, and easy to use.

The ULN2003, known for its high current and high voltage capability, provides a higher current gain than a single transistor and allows a microcontroller’s low voltage low current output to drive a high current stepper motor.

Additionally, there is a Molex connector that is compatible with the connector on the motor, allowing you to plug the motor directly into it. The board includes four LEDs that indicate activity on the four control input lines. They provide a good visual indication while stepping.

There is an ON/OFF jumper on the board for disabling the stepper motor if needed.

Features : –

The ULN2003 stepper motor driver PCB provides a direct drive interface between your microcontroller and stepper motor. The PCB provides 4 inputs for connection to your microcontroller, power supply connection for the stepper motor voltage, and ON/OFF jumper, a direct connect stepper motor header and 4 LEDs to indicate stepping state.

Here are some of the features of the ULN2003 driver

• 7 driver channels:
• Up to 500mA per channel:
• Easy to use:
• Affordable:

ULN2003 Driver Board Specifications : –

The ULN2003 driver is a versatile tool that can use in a variety of applications. It is perfect for robotics, drones, and other DIY projects. It can also use to control the speed of fans, lights, and other devices.

Here are some of the specifications of the ULN2003 driver board:

• Input voltage: 5V to 12V
• Output current: 500mA per channel
• Driver type: Darlington
• Number of driver channels: 7
• Dimensions: 50mm x 30mm x 15mm

ULN2003 Driver Board Applications : –

The ULN2003 driver board is a great way to add stepper motor control to your projects. It is small, affordable, and easy to use.

Here are some of the things you can do with a ULN2003 driver board:

• Control the speed of a stepper motor
• Move a stepper motor in a specific direction
• Make a stepper motor rotate
• Create a robotic arm that can move at different speeds
• Build a dimmer for LED lights
• Control the speed of a fan or other device

Package : –

1 x ULN2003 Driver Board for 5v Stepper Motor
