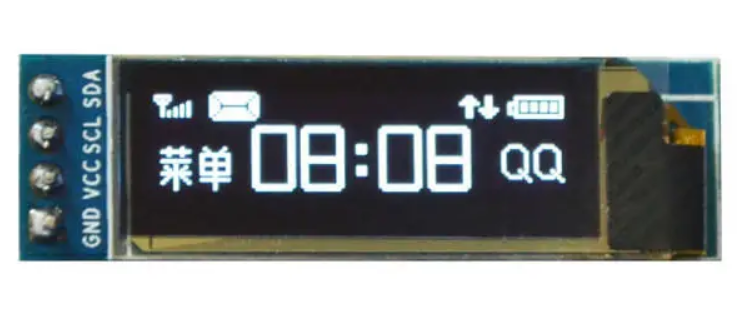

0.91 INCH OLED DISPLAY 12832 IIC 128X32 LCD SCREEN FOR ARDUINO SSD1306

@ TECH HALLROAD

0.91 inch oled is a general oled display Module, 0.91inch diagonal, 128×32 pixels, with embedded controller, communicating via I2C interface.

 450.00

Out of stock

Category:

0.91 inch oled is a general oled display Module, 0.91inch diagonal, 128×32 pixels, with embedded controller, communicating via I2C interface.

oled 0.91 is a dot matrix 128×32 COG graphic type OLED display module with PCB. The size of the active area is only 0.91” diagonal with module dimension 35.8×12.0 mm. This 0.91 inches OLED module has built-in IC SSD1306, and boasts high contrast ratio 10,000 : 1. The REA012832F OLED screen supports I2C interface. Logic supply voltage ranges from 2.8V-3.3V, the typical value is 3V. The available emitting colors are white, yellow and sky blue. The module can operate within the range of -40℃ to +80℃; storage temperature ranges from -40℃ to +85℃.

Features of 0.91 inch oled
  • 0.91inch small form factor
  • 128×32 high resolution
  • I2C interface, requires only two signal pins
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications of 0.91 inch oled
  • Driver: SSD1306
  • Interface: I2C
  • Display color: White
  • Resolution: 128×32
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 36 x 12.5 (mm)
Interface
SYMBOL DESCRIPTION
VCC Power (3.3~5V input)
GND Ground
SDA Data input
SCL Clock input



General Specs
More LCD Products at Majju.pk

majju.pk/…ics/optoelectronics/lcd-display

Datasheet:-
raystar-optronics.com/…/REA012832F-datasheet.pdf
