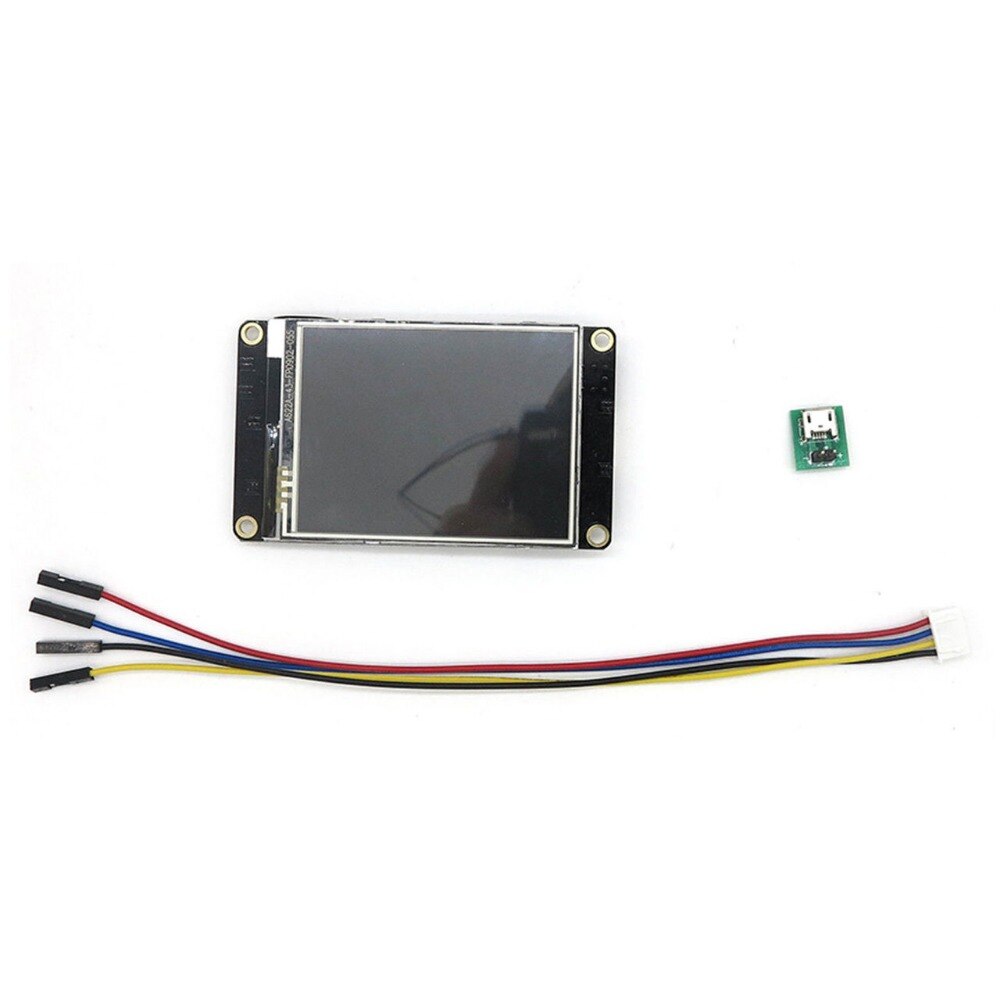

3.5 Inches TJC HMI LCD Display Module Touch Screen

3.5 Inches TJC HMI LCD Display Module Touch Screen is a Seamless Human Machine Interface (HMI) solution. 3.5 inch TJC TFT HMI LCD Touchscreen that provides a control and visualization interface between a human and a process, machine, application or appliance. TJC is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

The current HMI Intelligent Smart uSART Serial TFT LCD Module has been designed in two Versions, one is Nextion Version, the other is TJC Version. 3.5 Inches TJC HMI LCD Display Module Touch Screen can support Chinese to work in China only. Nextion is the international Version, it can connect the Nextion Editor smoothly in English. If you take the TJC Version to connect Nextion Editor, it’ll show incorrect code.

TJC includes a hardware part (a series of TFT boards) and a software part. The TJC TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, TJC editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development

Features:

• Supports multiple configuration controls
• Supports basic GUI instructions
• RGB 16-bit color real screen
• Supports BMP, JPG, JPEG, PNG image format
• Supports the automatic update of the superior software, and the firmware of the device is updated automatically
• Backlight attenuation 100, sleep mode, standby current 20 mA, compatible with touch activation function
• Supports serial download and SD card download in two ways, supports analog debugging by PC, supports simulator and debug device synchronization

3.5 Inches TJC HMI LCD Display Module Touch Screen Specifications:

• Touch method: resistant touch
• Operating voltage: 4.75-7 V
• FLASH space: 4 MB
• RAM space: 2048 bytes
• Resolution: 320 * 240
• Operating temperature: -20 / + 70 0 C
• Communication interface: USART serial interface
• Level interface: 3.3 V CMOS (5 V compatible)

Package Includes:

1x 3.5 Inches TJC HMI LCD Display Module Touch Screen
