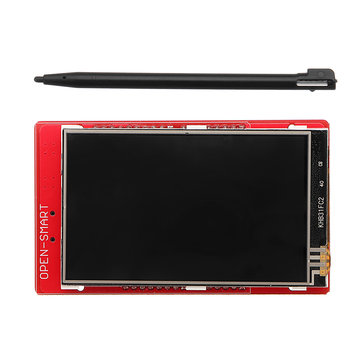

3.2 INCH TFT LCD MODULE WITH TOUCH SCREEN TEMPERATURE BOARD SENSOR AND PEN

This is a 3.2 inch TFT touch screen expansion card with shield interface and it has good compatibility. It integrates a 3.2-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is easy.

• With GPRS module, you can call your Arduino phone.
• with nfc reader module, you can show access control with the photos.
• With voltage and current sensor, you can use oscilloscope.
• Can use it directly to display signs, graphics and BMP format pictures. and touch control is available;
• Compatibility: As the sd card is connected SPI pins of ICSP interface, compatible with UNO R3 / Mega2560 / Leonardo
• touchscreen type: resistive touch screen.
• Touch Pen: length is 9 cm;
• Resolution: 240X400;
• Display size: 3.2 inches;
• Operating voltage: 5 V;
• Logic level: 5 V / 3.3 V;
• On-board 3.3 V / 300mA control circuit;
• Operating current: the maximum is 150mA
• The A0 ~ A3 pins, D4 ~ D13 pins. and I2C interface, D0 / D1 / D2 D3 is available, please refer to the schematics for the details.
• Onboard Micro SD slot, support Micro SD / TF Card;
• Onboard LM75 temperature sensor: standard I2C address is 0X48, scale is -55 ~ 125’C
• Very suitable for digital photo frame, oscilloscope, function generator, detection monitor
