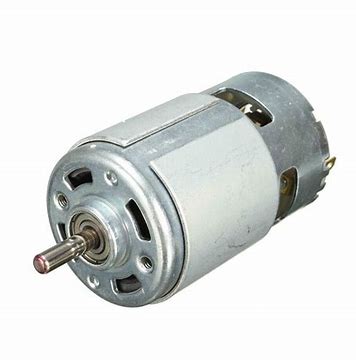

DC 12V 775 Motor High Speed & Torque Long Shaft 100w

The DC 12V 775 Motor High Speed Long Shaft Motor has a standard size of 66.7 x 42.0 mm. The 42.0 is the outer diameter as the motor is cylindrical, whereas 66.7 mm is its height. The number 775 stands for this standard size. It is in the same fashion to the number with 130/ 140 motor.

The number 775 is the Size ID of motor accepted as a standard. Its casing is made of rustproof material mainly steel with some protective coatings, with few plastic parts. It is a high torque high power device for mid to high-power applications generally in robotics, quadcopters, and industrials.

DC 12V 775 Motor consists of an stator, an armature, a rotor and a commutator with brushes. Opposite polarity between the two magnetic fields inside the motor cause it to turn. DC motors are the simplest type of motor and are used in household appliances, such as electric razors, and in electric windows in cars.

Specifications: –

• Motor Type: 775
• Rated voltage: DC12V
• Operating voltage: 12 V
• Idle speed: 3000 to 6000.
• Nominal current: 0.32A
• Nominal power 100 W
• Shaft 1: 5mm
• Shaft 2:7mm
• Weight:360 Gram
• Used In DC Fans

DC 12V 775 Motor Applications: –

• car wash pump,
• sprayer,
• electric tool
• Internet of things devices.
• Robotic projects, RC boats for a hobby.
• In quadcopter due to high speed/ torque.

Package: –

1 x DC 12V 775 Motor High Speed & Torque Long Shaft 100w
