3 way Line Following Tracking Sensor Module TCRT5000

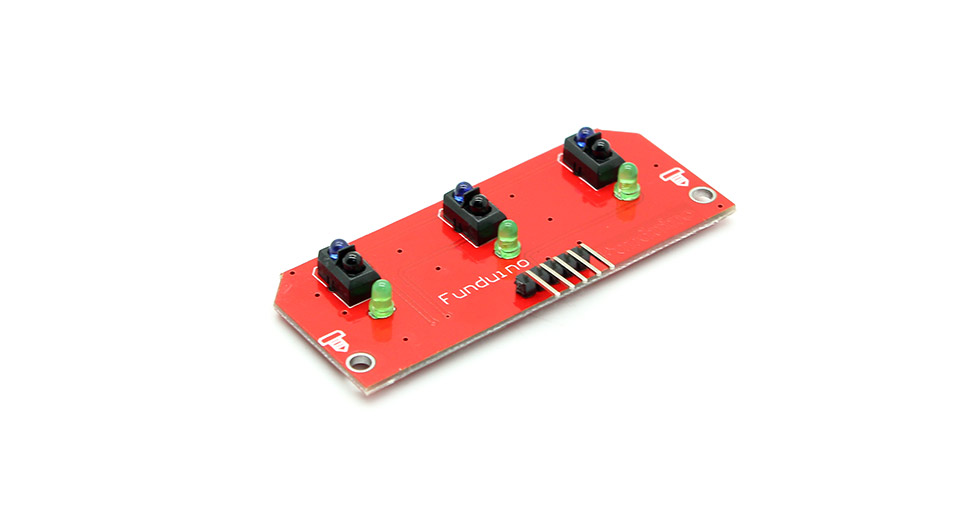

A 3-way line following tracking sensor module is a small, easy-to-use sensor that can use to create line following robots. TCRT5000 line following sensor module uses three infrared sensors to detect the presence of a black line on a white surface. The sensors are arranged in a triangle, with one sensor in the center and one sensor on each side. When the robot is placed on a black line, the sensors will detect the line and the robot will follow the line.

TCRT5000 3-way line following tracking sensor module has three infrared sensors, each with an LED indicator. The sensors are arranged in a triangle, with one sensor in the center and one sensor on each side. The LED indicators will light up when the corresponding sensor detects a black line.

The module is powered by a 5V supply and has three digital outputs, one for each sensor. The outputs are LOW when the corresponding sensor detects a black line and HIGH when the sensor does not detect a black line.

3-way line following sensor module is very easy to use. It can be connected to an Arduino or other microcontroller using the included jumper wires. Once the module is connected, the Arduino can be programmed to read the sensor values and control the robot’s movement.

The detection range of a TCRT5000 3-way line following tracking sensor module is typically between 1mm and 8mm. The exact detection range will vary depending on the surface that the sensor is detecting, the ambient light conditions, and the sensitivity of the sensor.

Features : –

TCRT5000 3-way line following tracking sensor module is a reflective optical sensor that is commonly used in robotics and other applications that require proximity detection. The sensor consists of an infrared LED and a phototransistor, both of which are housed in a black package that blocks visible light. When the LED is energized, it emits infrared light that is reflected back to the phototransistor if there is a surface nearby. The amount of reflected light that is detected by the phototransistor is used to determine the distance to the surface.

Here are some of the features of the TCRT5000 3-way line following tracking sensor module:

• 3 infrared sensors
• 3 LED indicators
• 5V power supply
• Digital outputs
• Adjustable sensitivity
• Small and lightweight

3 way Line Following Tracking Sensor Module Specifications : –

The input voltage of the TCRT5000 sensor module is important to consider when choosing a power supply for your project. If you are using a microcontroller with a 3.3V logic level, you will need to use a voltage regulator to step down the voltage from 5V to 3.3V. The input voltage of a TCRT5000 3-way line following tracking sensor module is typically between 3.3V and 5V.

Here are some of the specifications of a 3-way line following tracking sensor module:

• Operating voltage: 5V
• Output: Digital
• Sensitivity: Adjustable
• Dimensions: 25 x 25 x 15mm

3 way Line Following Tracking Sensor Module Pin Descriptions : –

The TCRT5000 3-way line following tracking sensor module has 4 pins:

• VCC: The power supply pin. The voltage on this pin should be between 3.3V and 5V.
• GND: The ground pin. This pin should be connected to the ground of your power supply.
• DO: The digital output pin. This pin outputs a HIGH or LOW signal depending on whether the sensor detects a black line or not.
• SENSITIVITY: The sensitivity adjustment pin. This pin can be used to adjust the sensitivity of the sensor.

Here is a table that describes the pinout of the TCRT5000 3-way line following tracking sensor module:

3 way Line Following Tracking Sensor Module Applications : –

The TCRT5000 3-way line following tracking sensor module is a great option for creating line following robots. It is easy to use, affordable, and accurate. The module is also versatile and can use in a variety of applications.

Here are some of the applications of 3-way line following tracking sensor modules:

• Line following robots
• Maze solvers
• Educational robots
• Industrial robots
• Security robots

Package : –

1 x TCRT5000 3-way Tracking Sensor Module
