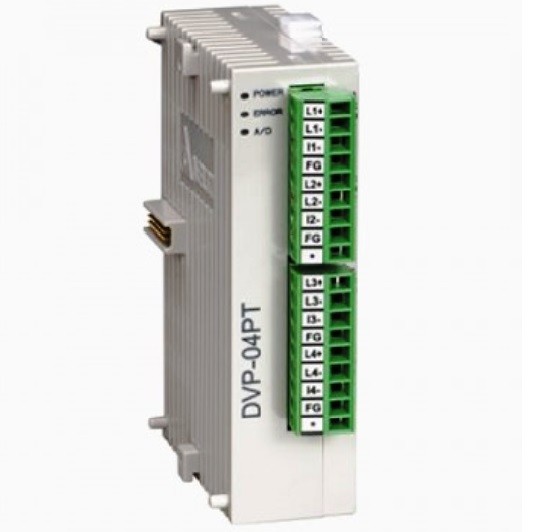

DVP04PT-S 4 CHANNEL PT100 TEMPERATURE FUNCTION MODULE IN PAKISTAN
Sold by
@ MODERN HALLROAD Ask ownerMODERN HALLROAD
The DVP04PT-S allows the connection of four platinum temperature sensors (PT100 3-WIRE 100ohm 3850 PPM/?C(DIN 43760 JIS C1604-1989)). The PLC converts the sensors input to a 14-bit digital signal, which can be manipulated using TO and FROM commands in the ladder logic program.
₨ 10,500.00
Detail:
- Power supply voltage 24 VDC (20.4VDC~26.4VDC) ( -15%~ 10%)
- Analog input channel 4 channels per module
- Sensors type 3-WIRE PT100ohm 3850 PPM/?C(DIN 43760 JIS C1604-1989)
- Current excitation 1 mA
- Temperature input range -200?C~600?C ( -328?F~1112?F)
- Digital conversion range K-2000~K6000 (K-3280~K11120)
- Resolution 14 bits(0.1?C) 14 bits(0.18?F)
- Overall accuracy ?0.5% of full scale of 25?C(77?F), ?1% of full scale during 0~55?C (32~131?F)
